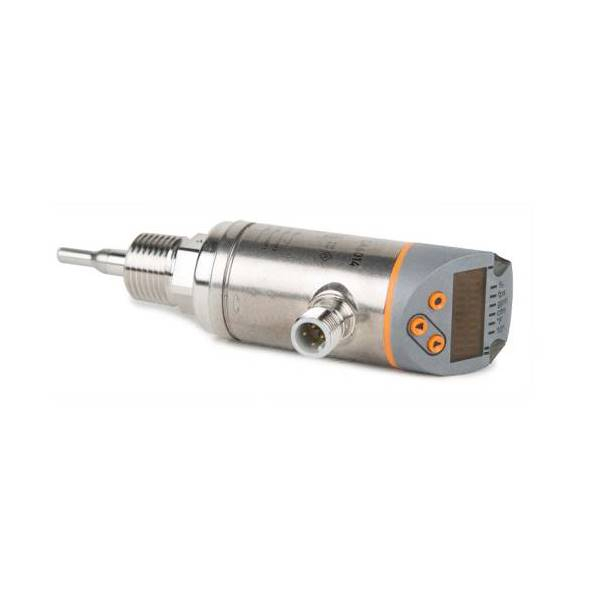

Sensaphone FGD-0223-4 Dual 4-20mA Flow & Temperature Sensor, 4 Inch Probe
Original price was: $458.80.$91.76Current price is: $91.76.
Dual 4-20mA Flow & Temperature Sensor, 4 Inch Probe
Features:
- Measures flow rates (ft/s) from .15 to 9.85 (liquid) and 6 to 328 (gases)
- Included 7′ cable can be extended with optional accessory wire
- Fast response time and integrated temperature measurement
- Set high and low limits
- Will go into alarm when flow rate exceeds limit
The sensor can be used to detect and measure the flow of oil, water, glycol and air in internal pipe diameters up to 10″.
A simple pushbutton menu allows the sensor to be programmed to fit your application setpoints. Switching, frequency or analog outputs are also selectable. Designed with an integrated digital display, values may be set in green or red for indicating if process values are within range or if limits have been exceeded.
A 24V DC power supply is required to power the sensor.
| Compatible Media | Water, glycol solutions, air, oils |
| Operating Voltage | 18 to 30 VDC |
| Probe Length | 1″, 26.6mm (0.5″ to 4″ pipe), 4″ |
| Total Number of Outputs | 2 |
| Output Signal | Analog |
| Analog Current Output | 4-20mA (scalable) |
| Liquid Flow Measuring Range | 0.15 to 9.85 ft/s |
| Gas Flow Measuring Range | 6 to 328 ft/s |
| Temperature Monitoring | 4″ Probe: 39° to 212°F |
| Operating Temperature Range | -40° to 176°F |
| Protection | IP 65; IP 67 |
| Display | 6x LED, green (%, fps, gpm, cfm, F, 103) |
| Fitting | 1/2 NPT |
| Flow Accuracy | 7% of measured value + 2% of range. Accuracy figure for water temperature at 68 to 158°F and inlet length of 5 |
| Temperature Accuracy (Water) | 0.5°F (0.3°C) for flow velocity between 1 ft/s and 9.85 ft/s |
| Temperature Accuracy (Air) | 1.8°F (1.0°C) for flow velocity greater than 32.8 ft/s |
Related products
-
Automation & Control

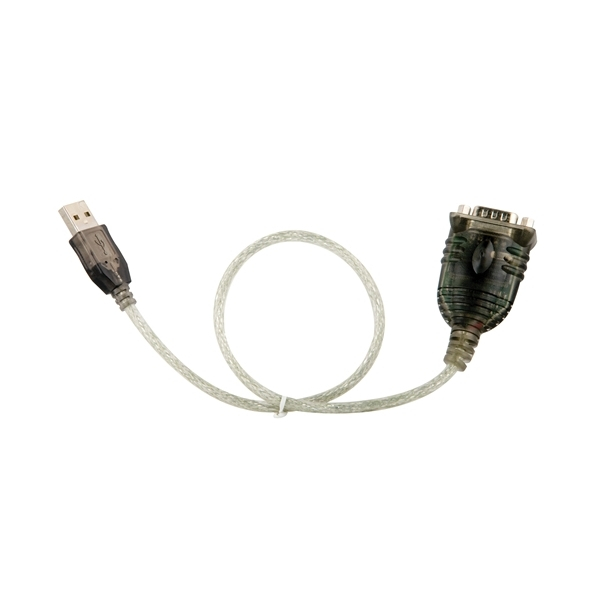

Sensaphone FGD-0221 USB to RS-232 Serial Converter
Original price was: $43.50.$17.40Current price is: $17.40. -
Automation & Control

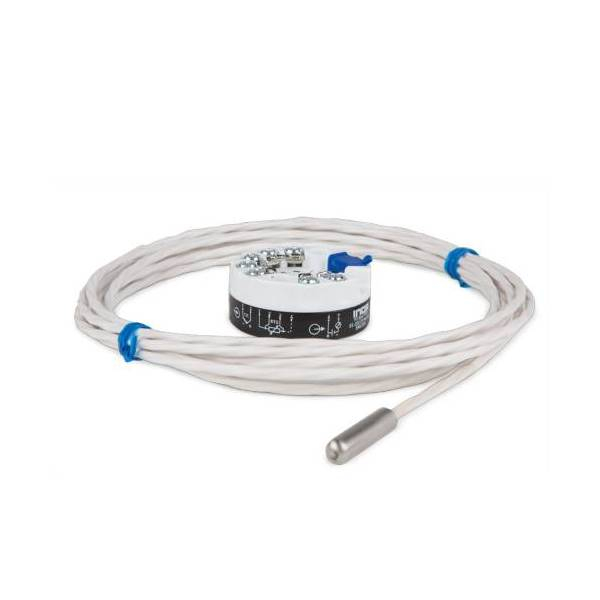

Sensaphone FGD-0240 Resistance Temperature Detector Probe with 4-20mA Transmitter (-200 to 35 C)
Original price was: $300.10.$60.02Current price is: $60.02. -
Automation & Control

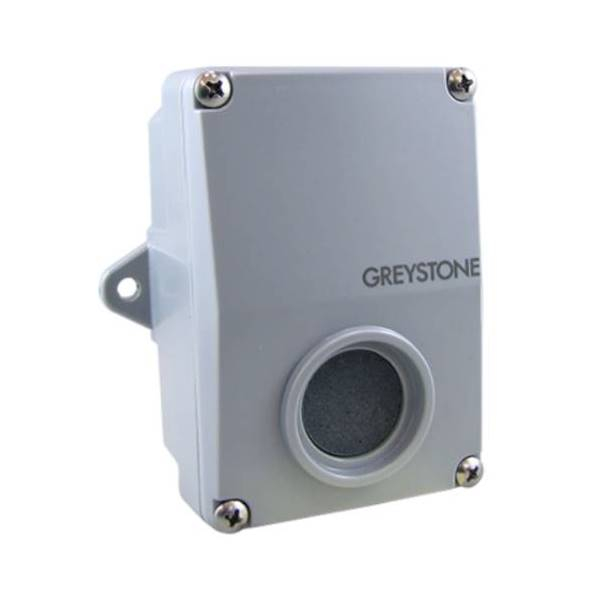

Sensaphone FGD-0065 4-20mA Type Carbon Monoxide (CO) Sensor
Original price was: $313.50.$62.70Current price is: $62.70. -
Automation & Control

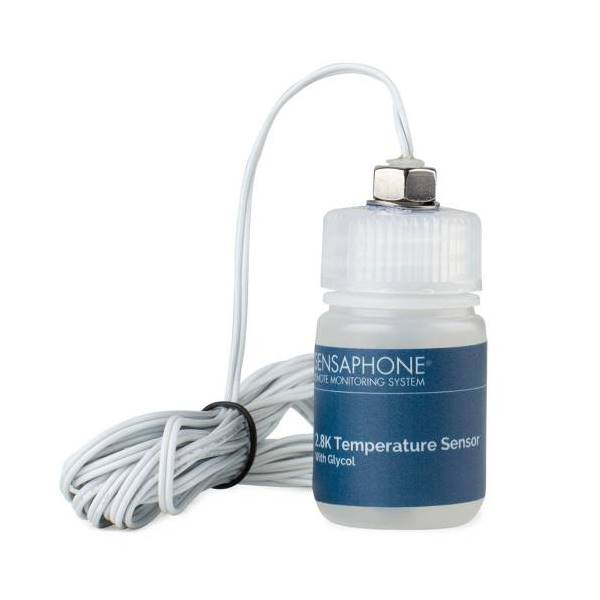

Sensaphone FGD-0127 2.8K Type Temperature Sensor in Glycol Vial
Original price was: $63.90.$19.17Current price is: $19.17. -
Automation & Control

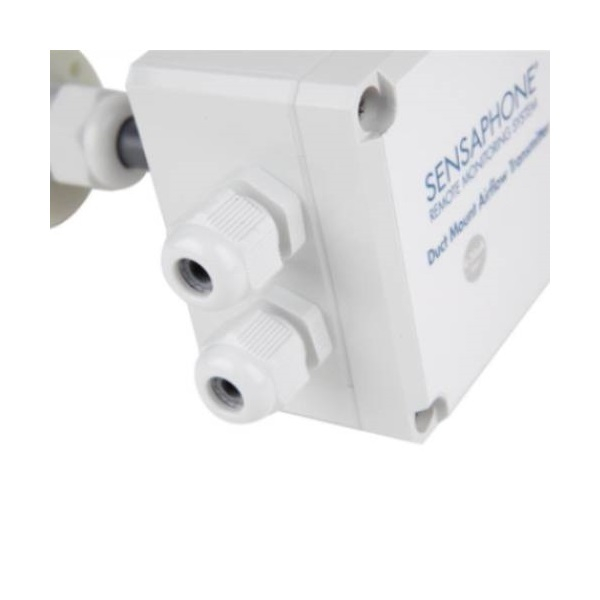

Sensaphone FGD-0069-DUCT 4-20mA Duct Mount Air Flow Transmitter
Original price was: $218.30.$54.58Current price is: $54.58. -
Automation & Control

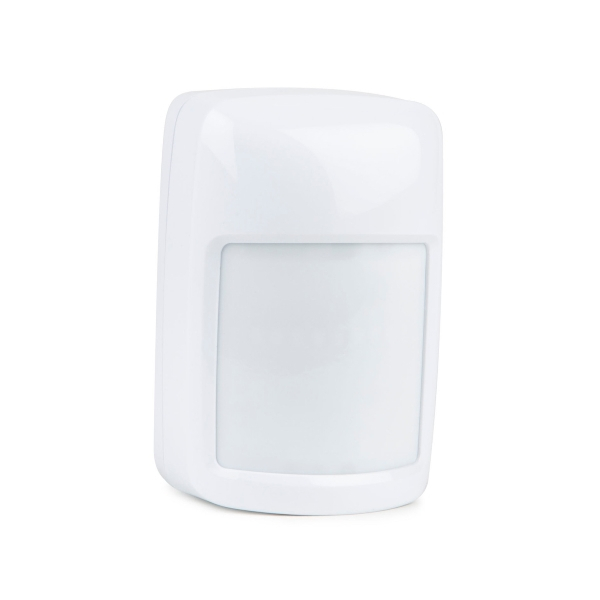

Sensaphone FGD-0007-HW Contact Type Infrared Motion Detection Sensor
