Sensaphone FGD-0069-DUCT 4-20mA Duct Mount Air Flow Transmitter

Original price was: $218.30.Current price is: $54.58.

Add to Wishlist
Compare
FGD-0069-DUCT_A

4-20mA Duct Mount Air Flow Transmitter

Features:

  • Measures air flow from 0-8m/s or 0-16m/s
  • Accurate to ±5%
  • Compensates for changes in air temperature
  • Telescopic arm allows sensor to be placed at correct depth into duct
  • Requires 24VDC power supply

The sensor registers the air flow speed according to a thermal principal based on the fact that the cooling action of air increases with airspeed. The duct mount enclosure allows the sensor to be placed inside an air duct. A 24V DC power supply is required to power the sensor.

Air Flow Speed Range 0-8 m/s or 1-16 m/s or 0-16 m/s by removing on-board jumper
Accuracy 5%
Operating Temperature Range 32° to 122°F
Operating Humidity Range 5 – 95% RH
Depth of Insertion Channel 2-8″
Dimensions 3.15 x 3.15 x 2.17″

Reviews

There are no reviews yet.

Be the first to review “Sensaphone FGD-0069-DUCT 4-20mA Duct Mount Air Flow Transmitter”

Your email address will not be published. Required fields are marked *

Related products

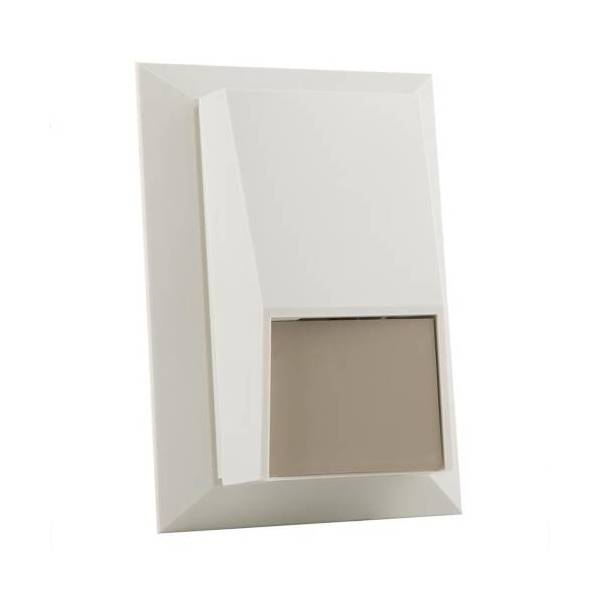

Sensaphone FGD-0100 2.8K Type Room Temperature Sensor
