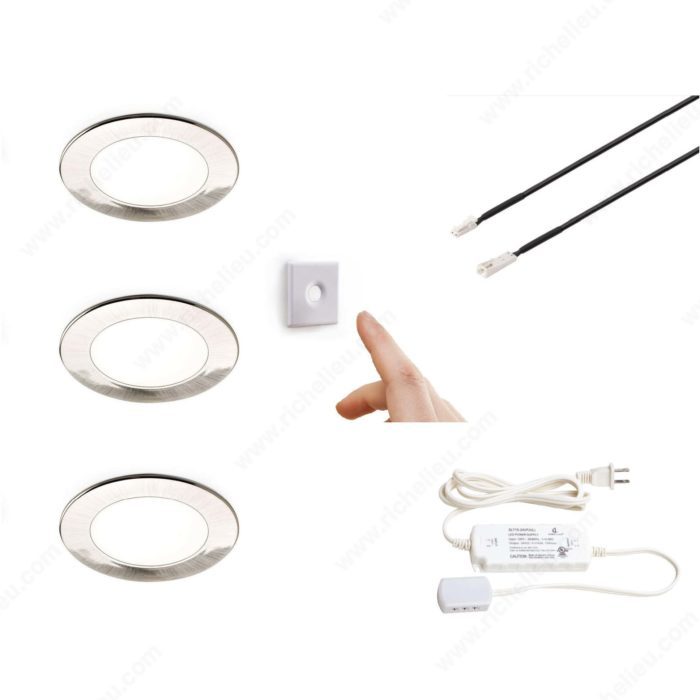

Richelieu WEBKIT1243020 ATOM puck LED for Under Cabinet Lighting is designed to enhance both functionality and aesthetics in any kitchen, living room, or commercial setting. This versatile lighting solution offers multiple control options, including a Wi-Fi app, a touch dimmer, or a Decora Bluetooth wall dimmer, allowing for seamless integration into your existing setup.The Atom is ideal for 48″ counters, with the flexibility to extend coverage by adding a puck light every 15″ center-to-center. It can be either recessed or surface-mounted using a trim ring, sold separately. Featuring a warm white light color at 3000 K, this LED fixture provides 180 lumens of brightness with a remarkable luminous efficiency of 60 lm/W. Installation is straightforward, supported by a pre-wired 78″ power cable and available extension cables in 20″, 40″, and 78″ lengths. Note that the recommended distance from the light to the power supply is 24 feet. Each Atom puck boasts a contemporary satin nickel finish, a compact diameter of 2 11/16 inches, and adheres to strict safety standards, including UL and CE certifications. Elevate your lighting design with the Richelieu ATOM puck LED, where style meets practicality.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 3000 K

Light Color: Warm White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 60 lm/W

Luminous Flux: 180 Lumen

Mounting: Recessed

Operation: Touch

Product #: WEBKIT1243020

Product №: WEBKIT1243020

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
