Richelieu WEBKIT1243023 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1243023 ATOM Under Cabinet LED Puck Light – Installation Guide

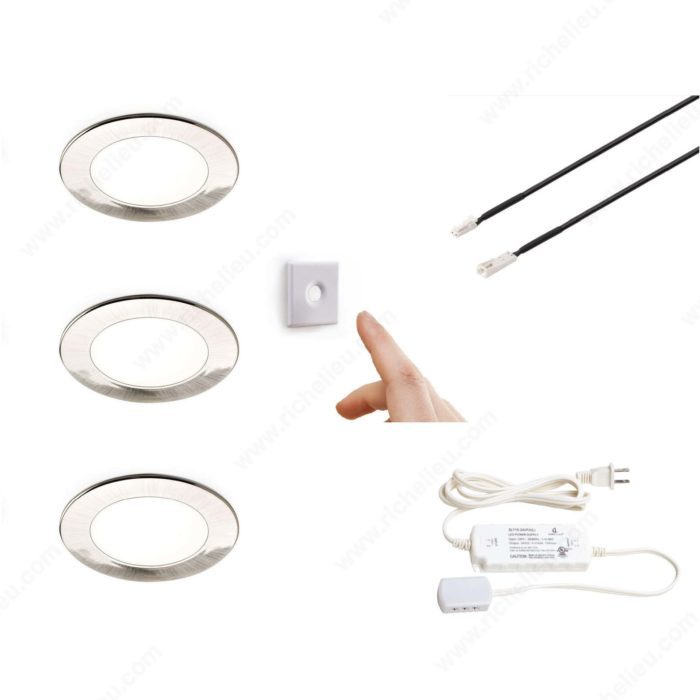

Richelieu WEBKIT1243023 ATOM puck LED for Under Cabinet Lighting is designed to enhance your kitchen, living room, or commercial space with efficient and stylish illumination. This versatile lighting solution features a 4000 K neutral white color temperature and a high Color Rendering Index (CRI) of 90, ensuring vibrant and true-to-life colors in your environment. Compatible with various control options, including a Wi-Fi app, touch dimmer, and Decora Bluetooth wall dimmer, this puck light offers flexibility to suit your preferences. The installation is straightforward, with the option for recessed or surface mounting using a trim ring (sold separately). The 78″ pre-wired power cable simplifies setup, while extension cables in 20″, 40″, and 78″ lengths accommodate diverse configurations. Ideal for a 48″ counter, the Atom puck light’s luminous efficiency of 65 lm/W and output of 195 lumens provide effective task and accent lighting. Follow recommended spacing of one puck every 15″ CTC for longer counters. With an IP20 rating and compliance with UL, ETL, and CE standards, you can trust the safety and quality of this contemporary fixture. Enhance your space with Richelieu’s ATOM puck LED lighting solution today.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Touch

Product #: WEBKIT1243023

Product №: WEBKIT1243023

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
