Richelieu WEBKIT1242893 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1242893 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1242893 ATOM puck LED for Under Cabinet Lighting is an innovative solution designed to enhance your kitchen, living room, or commercial space with efficient and stylish illumination. This versatile lighting kit is recommended for a 48″ counter, with the flexibility to add additional puck lights every 15″ for longer surfaces.Available control options include a Wi-Fi app, a Touch Me Dimmer, and a Decora Bluetooth Wall Dimmer, ensuring seamless integration into your existing setup. The Atom can be elegantly recessed or surface mounted using a trim ring (sold separately) for a sleek finish. Featuring a warm white light color at 3000 K and a Color Rendering Index (CRI) of 90, it creates a welcoming atmosphere while delivering 180 lumens of luminous flux-perfect for accent and task lighting. The 78″ pre-wired power cable simplifies installation, and extension cables are available in various lengths for added convenience. With a diameter of 2 11/16 inches and a low-profile design, the Atom fits discreetly under cabinets. Compliant with UL, ETL, and CE standards, it is safe and reliable for any application. Choose the Richelieu ATOM puck LED for a modern touch and functional brilliance in your space.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

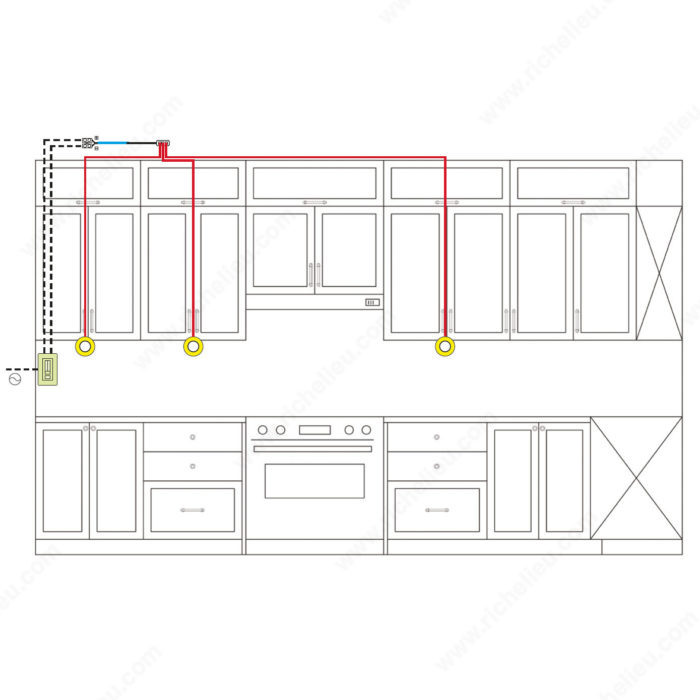

– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: White

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 3000 K

Light Color: Warm White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 60 lm/W

Luminous Flux: 180 Lumen

Mounting: Recessed

Operation: Touch / Wall

Product #: WEBKIT1242893

Product №: WEBKIT1242893

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
