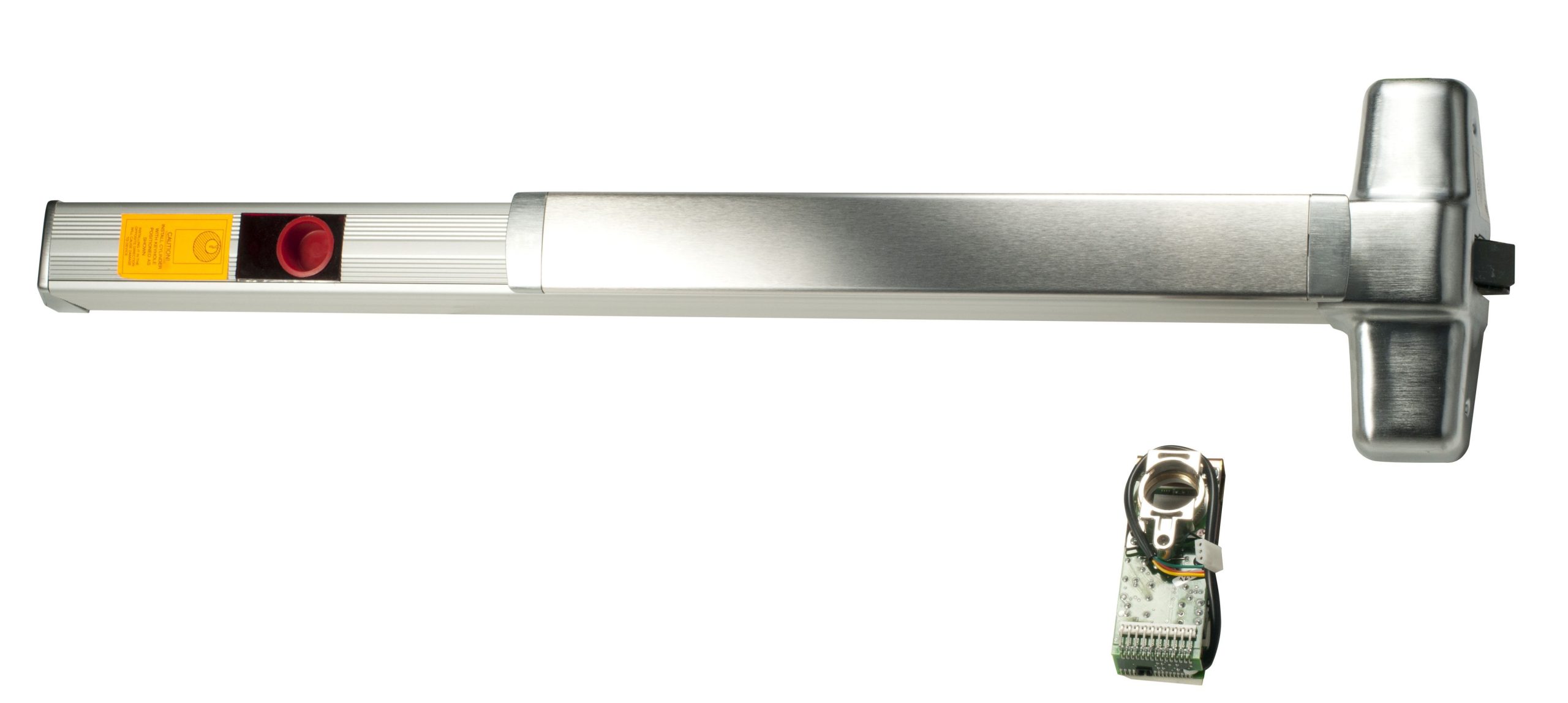

Von Duprin CXA98EO26D3 3′ Chexit Smooth Case Rim Exit Device, Satin Chrome Finish

Von Duprin CXA98EO26D3 3′ Chexit Smooth Case Rim Exit Device, Satin Chrome Finish

Von Duprin CXA98EO26D3 3′ Chexit Smooth Case Rim Exit Device in a sleek Satin Chrome finish is designed to enhance safety and security in commercial spaces. This rim latching exit device is a reliable solution for high-traffic environments, providing an exit-only function without trim included. One of its standout features is the integrated alarm system, which activates upon an attempted exit, ensuring the door remains secure for 15 seconds before releasing automatically in the event of a fire alarm. Constructed for durability, the device includes a screw pack suitable for installation on 1-3/4″ (44mm) and 2-1/4″ (57mm) thick metal or wood doors. Its overall length of 33 inches, along with a head size of 8″ x 2-3/4″, ensures compatibility with a variety of door dimensions. The Chexit device operates with a 24 Volt DC power supply, making it a practical choice for modern access control systems. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Von Duprin CXA98EO26D3 combines quality and peace of mind, making it a trusted choice for building professionals and discerning homeowners alike. UL listed for safety, this electronic exit device continues to set the standard in the industry.

3′ Chexit Smooth Case Rim Exit Device 626 Satin Chrome Finish

A mainstay in public buildings for decades Von Duprin’s safety products are known for their unparalleled quality and performance. From innovative exit devices to electronic access control solutions and accessories, Von Duprin never compromises when security is at stake. In fact, an independent study of more than 100 commercial facilities across the U.S. documented that Von Duprin exit devices require significantly less maintenance over a 30-year period than any other brand. The quality of Von Duprin’s exit devices provides confidence and peace of mind in critical moments.

• Includes Screw Pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) Thick Metal or Wood Doors
• Exit Only, No Trim Included
• Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
• The Von Duprin Chexit Device Sounds an Alarm and Keeps an Exit Door Secured for 15 Seconds Following an Attempt to Exit. The Chexit Releases Immediately Upon a Fire Alarm Condition
• Rim Latching Device

Attributes

Ship via: Can Ship UPS

Category: Commercial Electronic Devices

Chassis Type: Rim Chassis

Dimension: 33″ Overall Length, 8″ x 2-3/4″ Head, 2-1/4″ x 2-1/4″ Bar, 3-13/16″ Projection

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Finish: Satin Chrome

Finish Code: 626 (US26D)

Fire Rated: No

Function: Exit Only

Hazardous Material: NO

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Forged Brass

No Of Inners: 1

Operating Voltage: 24 Volt DC

Order_ Qty: 1

Power Supply: Wired

Series: 98 Series

Strike: 299 Strike

Strike Dimension: 1-1/4″ x 2-7/8″

Subcategory: Electronic Exit Devices

Ul Listing Type: UL Listed

Upc: 194555705920
