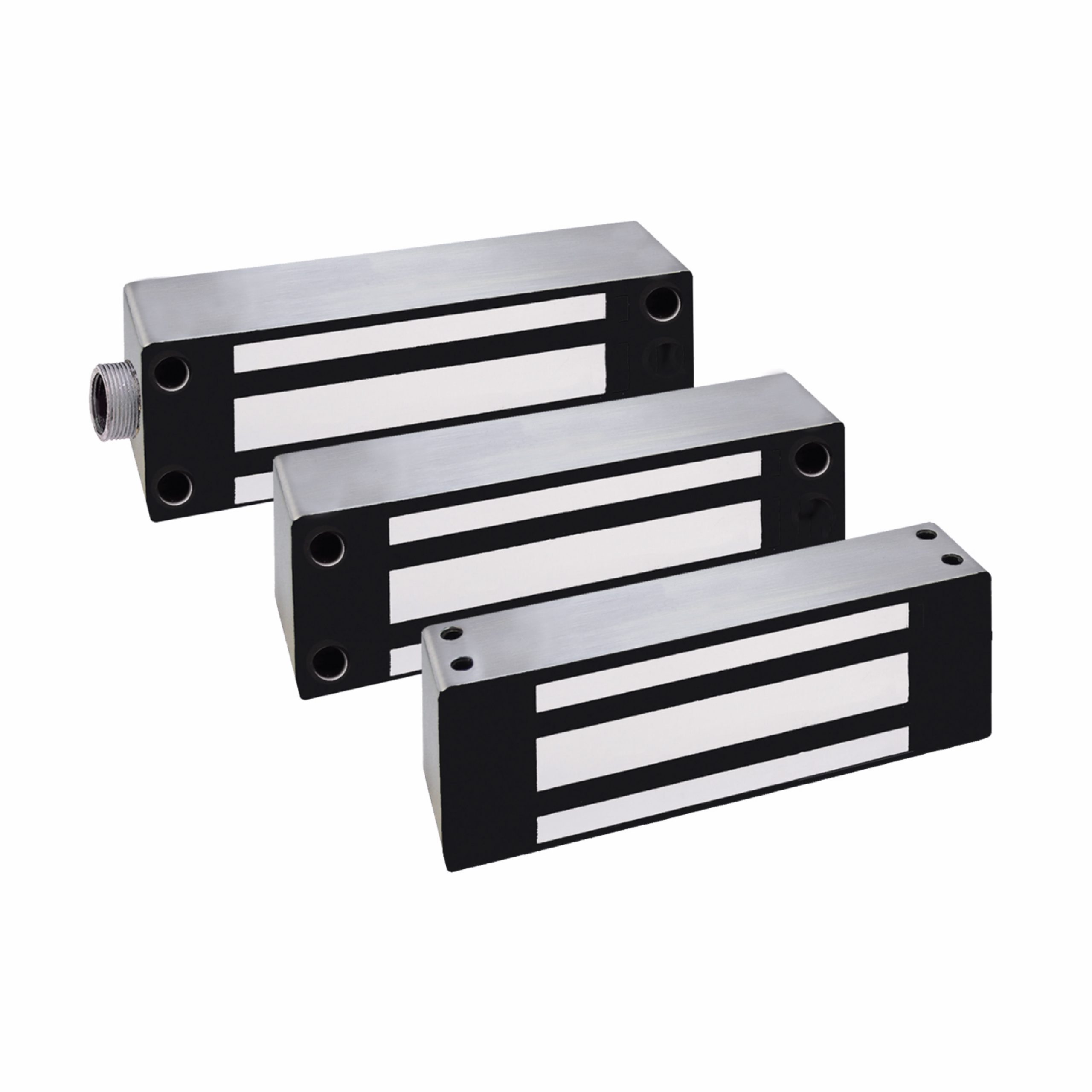

Securitron M62FGBD Maglock

Securitron M62FGBD Maglock
Assa Abloy Electronic Security Hardware – Securitron M62FGBD 12 Volt / 24 Volt DC M62 Magnalock Face Drilled with Gate Conduit, MBS, and DPS Satin Stainless Steel Finish

• Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
• World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
• Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
• Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
• MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Attributes

Ship via: Can Ship UPS

Application: CM EL

Baa Qualified: Yes

Clazz: SE

Color: Satin Stainless Steel

Country of Origin: Usa

Current 12v DC (m A): 250

Current 24v DC (m A): 150

Finish: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Fire Rated: Yes

Fire Rating (hrs): 3

Grade: Grade 2

Holding Force (lbs): 1200

Item Class Description: 12 Volt / 24 Volt DC M62 Magnalock Face Drilled with Gate Conduit, MBS, and DPS

Item Type Keyword: Magnets

Limited Warranty: Limited Lifetime Warranty

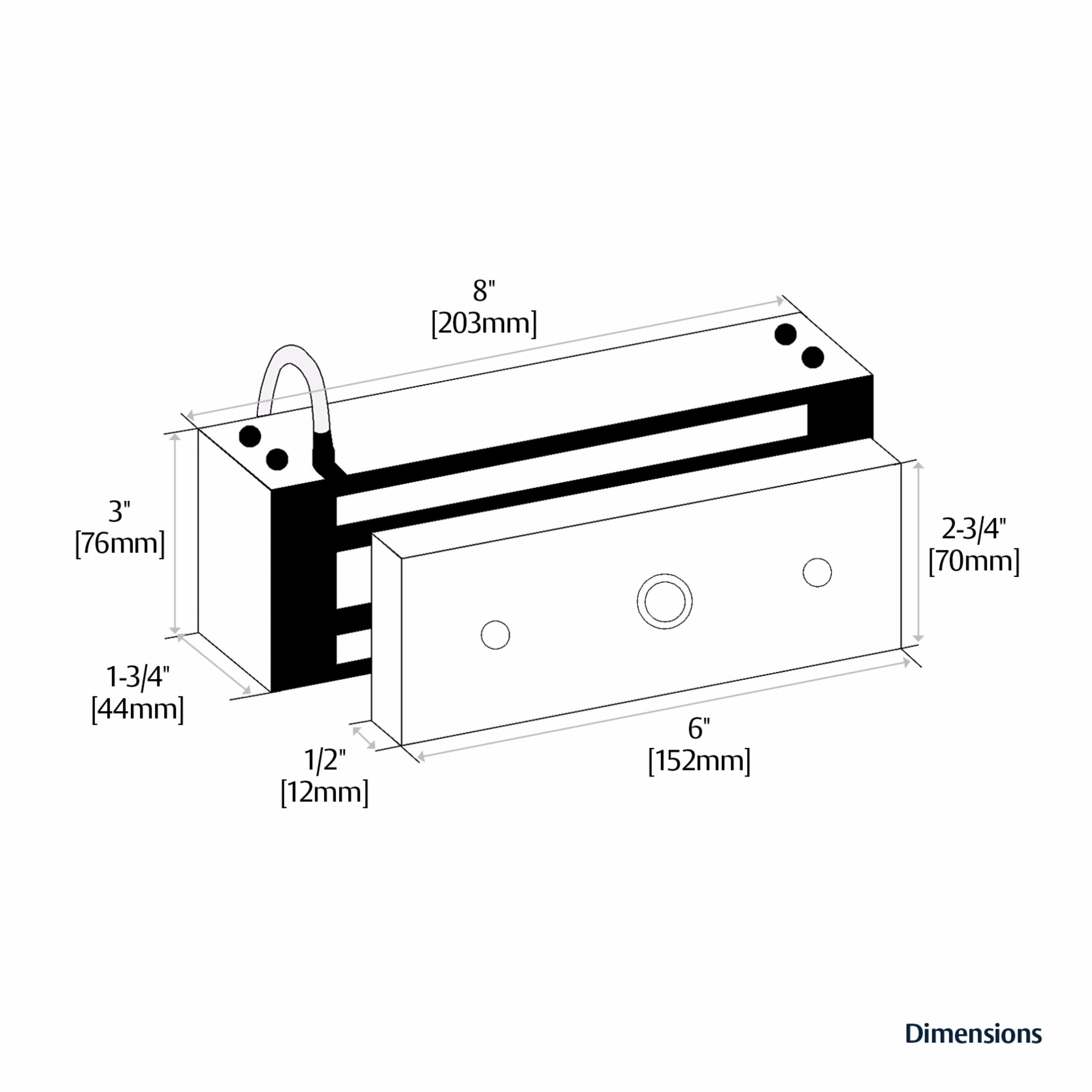

Magnet Depth (in): 2.75

Magnet Height (in): 3

Magnet Length (in): 8

Material: Stainless Steel

Maximum Operating Temperature (° F): 140

Minimum Operating Temperature (° F): -40

Monitoring Options: BondSTAT Monitor & Door Position Switch

Mounting: Face Drilled|Gate Conduit

Number Of Inners: 1

Operating Voltage: 12VDC/24VDC

Options: Standard Strike

Outdoor Rated: Yes

Preload Capable: Yes

Restrictions: None

Series: M62 Series

Subtype: Magnetic Locks

Switch Type: MBS/DPS

Type: Electronics

Upc: 78460703650066

Voltage: 12/24
