Schlage PIM400-TD2 Electrical Accessories
Original price was: $745.20.$149.04Current price is: $149.04.
Schlage PIM400-TD2 Electrical Accessories

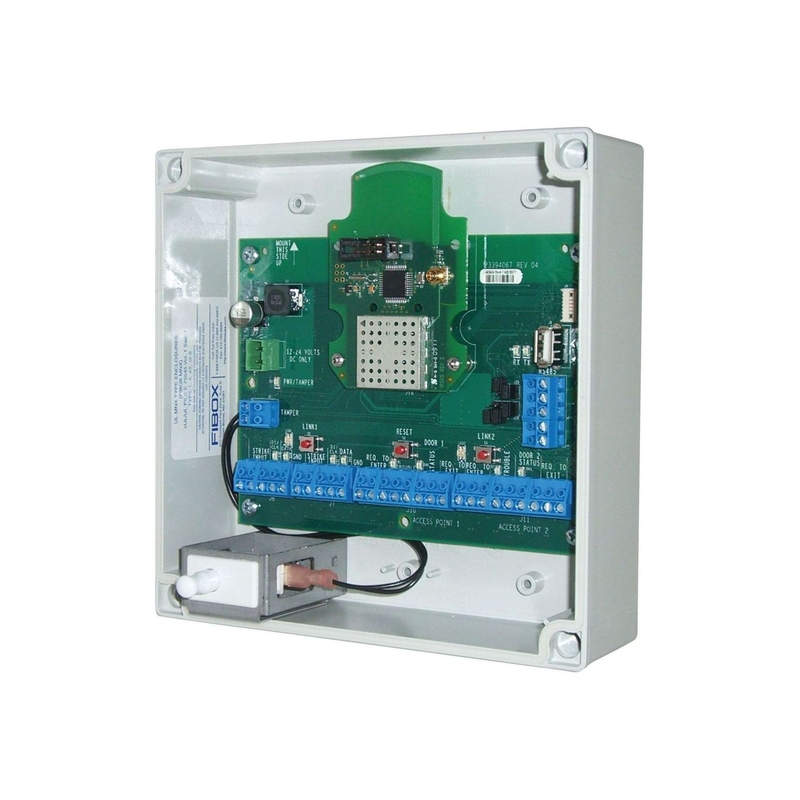

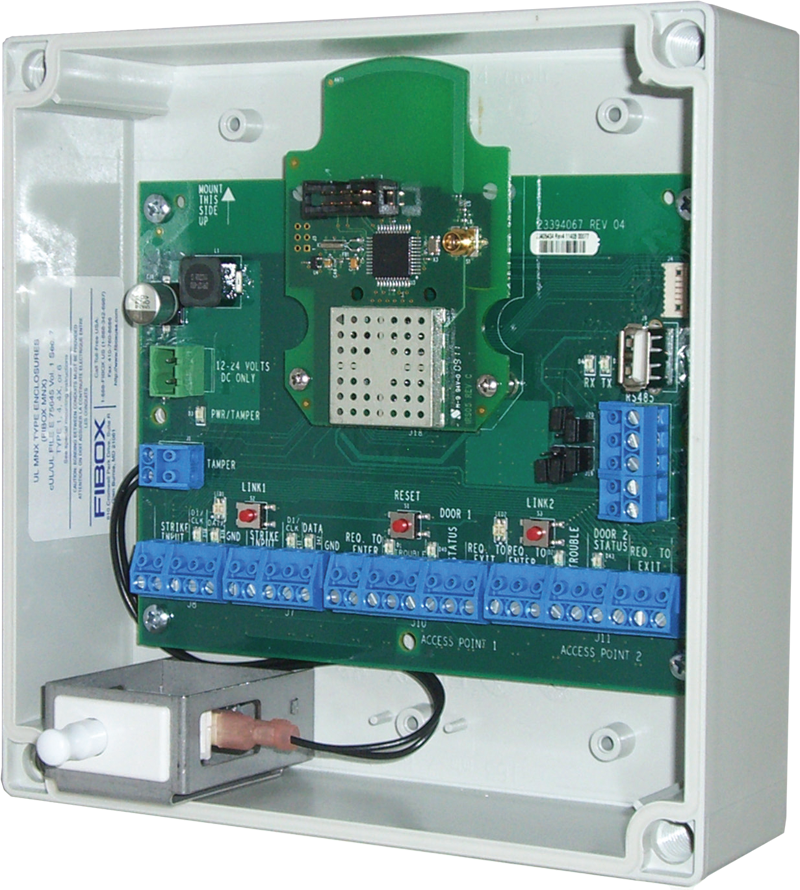

Panel Interface Board,Supports 2 Doors
- 900 MHz spread spectrum RF technology for long range, reliable communications
- Supports up to two AD Series wirelessdevices
- Automatic linking to remote wireless access points with 10 channel frequencies to select from enables easy commissioning
- AES-128 bit encrypted spread spectrum transmissions
- 13 visual indicators to quickly verify operation and troubleshoot
- Flash memory for easy software upgrades
- Certifications: NEMA 1, 4, 4X, 6; UL 294; FCC Part 15; RoHS; Industry Canada (IC)
Attributes
Ship via: Can Ship UPS
Access Type: Interface/Modules
Alternate Codes: 145467, PIM400-TD2, PIM400TD2, SCHPIM400-TD2
Category: Access Control, Access Management, Standalone
Certifications: FCC, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, RoHS Compliant
Communication Technology: Clock and Data, Wiegand
Depth: 3″
Door Application: Access Management
Features: 13 LED status indicators
Height: 7-1/10″
Mounting: Wall
Operating Temperatures: -31F to 151F (-35C to 66C)
Operating Voltages: 12/24 VDC
Series: Schlage Electronics AD Series Networked
Subtype: Electrical Accessories
Type: Sensors, Switches, Relays, Timers
Voltage: 12 – 24
Voltage Type: VDC – Direct
Weight: 1.25lbs
Wire Gauge: 18
