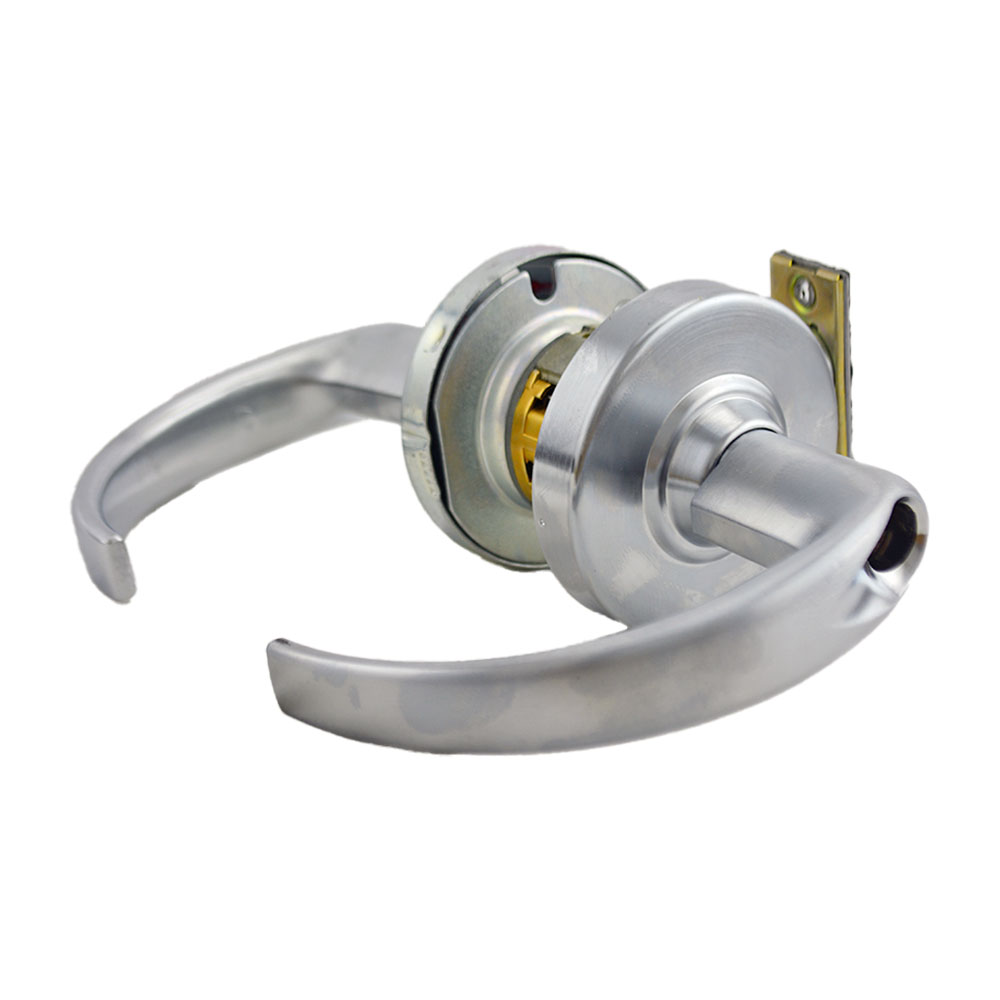

Schlage ND80LSPA626 ND Series Storeroom Less Cylinder Sparta, Satin Chrome, 13-247 Latch

Schlage ND80LSPA626 ND Series Storeroom Less Cylinder Sparta, Satin Chrome, 13-247 Latch

Schlage Commercial ND80LSPA626 ND Series Storeroom Less Cylinder Sparta combines functionality with durability, making it an ideal choice for secure environments. Designed for storeroom applications, this lockset features a fixed outside lever and allows entrance by key only, ensuring that the inside lever remains unlocked for immediate egress. Crafted to meet the highest industry standards, it is ANSI/BHMA Certified A156.2-2011 and has achieved Commercial Grade 1 rating for exceptional strength. This lockset accommodates doors ranging from 1-5/8″ to 2-1/8″ in thickness, with a 2-3/4″ backset and a crossbore size of 2-1/8″ bore with two 5/16″ post holes. The satin chrome finish adds a sleek touch while ensuring corrosion resistance. Additionally, it is UL Listed for 3-hour fire doors, providing peace of mind in emergency situations. The Sparta lever design complements the Rhodes rose escutcheon, enhancing the aesthetic without compromising on security. With a limited 10-year mechanical and 3-year electro-mechanical warranty, this product reflects Schlage’s commitment to quality and reliability. Whether for commercial or institutional use, the ND80LSPA626 is a dependable choice that stands the test of time.

ND Series Storeroom Less Cylinder Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door
• Storeroom, Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Sparta

Dimension: 3-7/16″ Rose with 4-15/16″ Lever and 3-1/2″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Satin Chrome

Finish Code: 626

Function: Storeroom

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Sparta Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-09-19

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 043156551170
