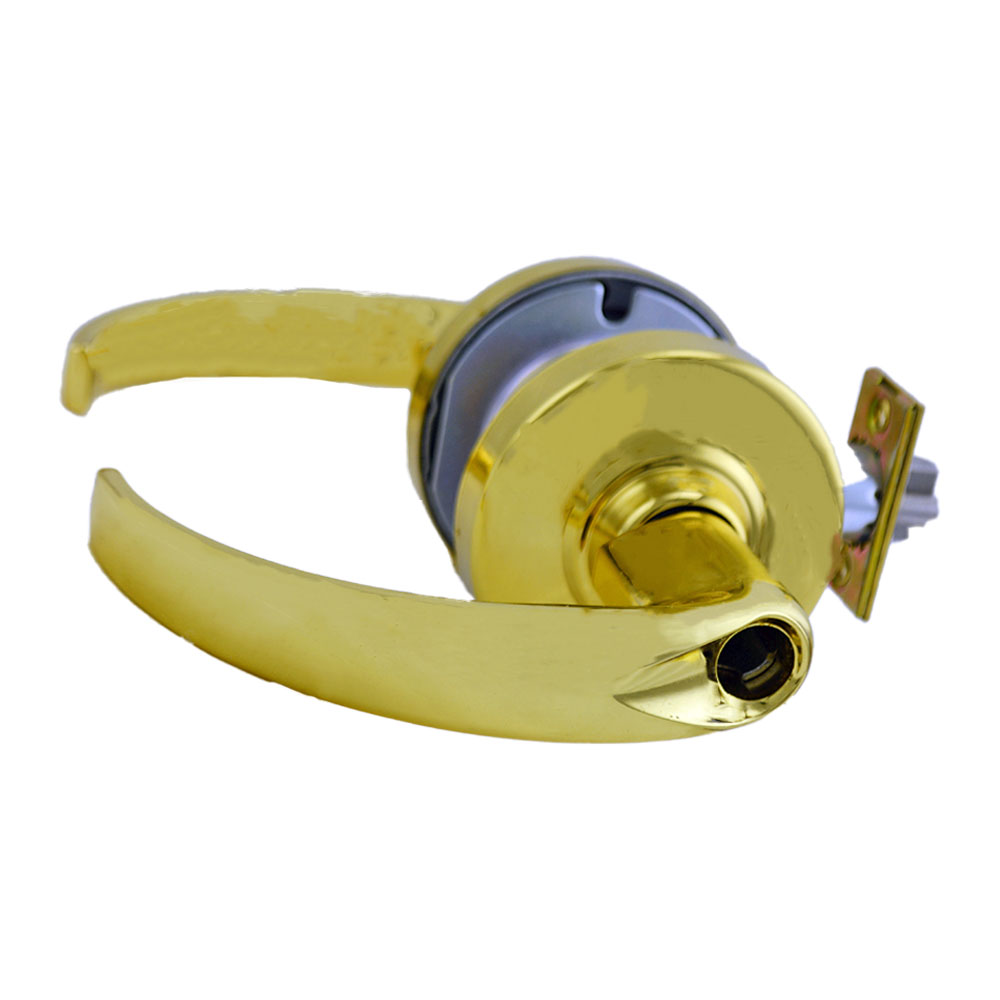

Schlage ND80LSPA605 ND Series Storeroom Less Cylinder Sparta, 13-247 Latch, Bright Brass Finish

Schlage ND80LSPA605 ND Series Storeroom Less Cylinder Sparta, 13-247 Latch, Bright Brass Finish

Schlage Commercial ND80LSPA605 ND Series Storeroom Less Cylinder Sparta is engineered to provide robust security for storeroom applications. This mechanical lockset features a storeroom function where the outside lever is fixed, allowing entrance by key only, while the inside lever remains unlocked for immediate egress. Designed for versatility, it accommodates doors ranging from 1-5/8″ to 2-1/8″ in thickness and is ANSI/BHMA Certified to A156.2-2011 standards, ensuring reliable performance in commercial environments. Crafted from durable zinc base material, the ND80LSPA605 showcases a bright brass finish that combines both functionality and aesthetic appeal. It includes a 2-3/4″ backset and a 4-7/8″ ANSI strike with a 1-1/4″ lip, facilitating easy installation on standard doors. The rose features a Rhodes design and is complemented by the Sparta lever, providing a modern touch to any setting. This lockset is UL Listed for 3-hour fire doors, ensuring safety without compromising security. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage Commercial ND80LSPA605 ND Series offers peace of mind, making it a reliable choice for building professionals and discerning homeowners alike.

ND Series Storeroom Less Cylinder Sparta with 13-247 Latch 10-025 Strike Bright Brass Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door
• Storeroom, Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Sparta

Dimension: 3-7/16″ Rose with 4-15/16″ Lever and 3-1/2″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Bright Brass

Finish Code: 605

Function: Storeroom

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Sparta Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door
