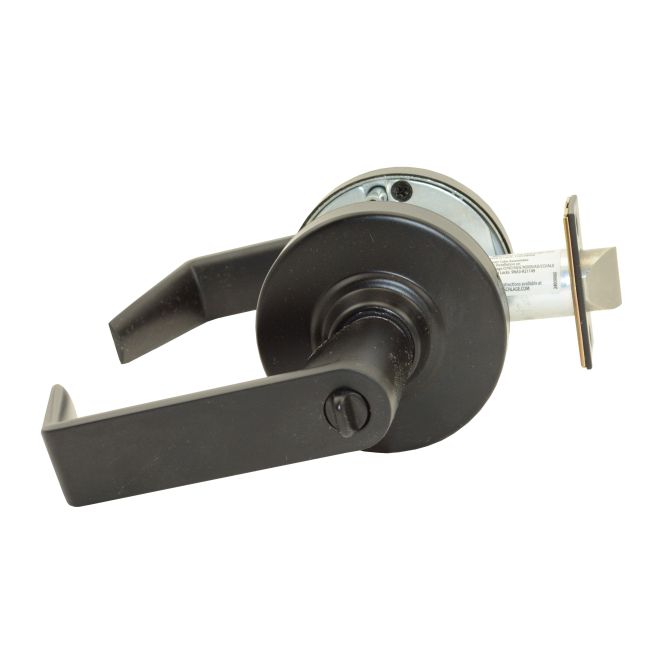

Schlage ND53JRHO622 ND Series Entry Large Format Less Core Rhodes, Matte Black, 13-247 Latch

Schlage ND53JRHO622 ND Series Entry Large Format Less Core Rhodes, Matte Black, 13-247 Latch

Schlage Commercial ND53JRHO622 ND Series Entry Large Format Less Core Rhodes with 13-247 Latch 10-025 Strike in a sophisticated matte black finish is designed for security and ease of use in commercial environments. This entry lockset features a turn/push-button locking mechanism, allowing for convenient operation while requiring a key for security from the outside. The inside lever remains free for quick and easy access, ensuring that safety does not compromise responsiveness. With ANSI/BHMA Certification A156.2-2011 and Commercial Grade 1 performance, this lockset is built to withstand the rigors of daily use. It is UL Listed for 3-hour fire doors, making it a reliable choice for safety compliance in various building applications. The ND53JRHO622 accommodates door thicknesses ranging from 1-5/8″ to 2-1/8″, making it versatile for different installations. The Rhodes design complements modern architecture, while the durable zinc base construction ensures longevity. This lockset features a 2-3/4″ backset and a 2-1/8″ crossbore size for straightforward installation. Backed by a limited 10-year mechanical and a 3-year electro-mechanical warranty, Schlage stands as a trusted name in security solutions, providing peace of mind for property owners and managers alike.

ND Series Entry Large Format Less Core Rhodes with 13-247 Latch 10-025 Strike Matte Black Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Rhodes

Dimension: 3-7/16″ Rose with 4-9/16″ Lever and 2-15/16″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Matte Black

Finish Code: 622

Function: Entry

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Rhodes Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-12-14

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 194555193406
