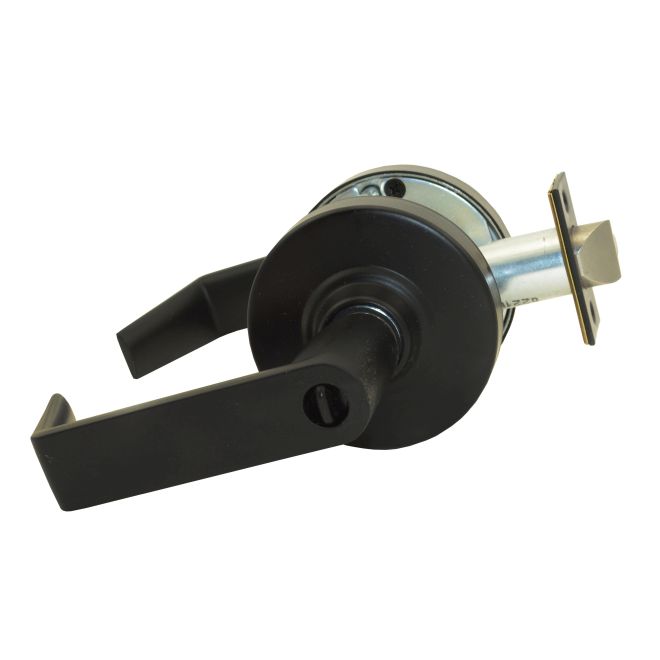

Schlage ND53BRHO622 ND Series Entry Small Format Less Core Rhodes, 13-247 Latch, Matte Black

Schlage ND53BRHO622 ND Series Entry Small Format Less Core Rhodes, 13-247 Latch, Matte Black

Schlage Commercial ND53BRHO622 ND Series Entry Small Format Less Core Rhodes offers a robust solution for secure access in commercial environments. Designed for durability and functionality, this entry lockset features a turn/push-button locking mechanism, allowing it to be operated with a key until manually unlocked. The inside lever remains always free, ensuring safety and convenience for users. This lockset is ANSI/BHMA Certified A156.2-2011 and is built to fit doors ranging from 1-5/8″ to 2-1/8″ in thickness, making it versatile for various installation needs. With its matte black finish, the Rhodes design adds a modern touch to any entryway while maintaining a professional appearance. Constructed from zinc base material, the ND53BRHO622 is a Commercial Grade 1 lock that is UL Listed for 3 Hour Fire Door compliance. It features a 2-3/4″ backset and a 2-1/8″ cross bore with two 5/16″ post holes for easy installation. The lockset also includes a 4-7/8″ ANSI strike with a 1-1/4″ lip. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, this lock provides peace of mind and reliability for building professionals and homeowners alike.

ND Series Entry Small Format Less Core Rhodes with 13-247 Latch 10-025 Strike Matte Black Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Rhodes

Dimension: 3-7/16″ Rose with 4-9/16″ Lever and 2-15/16″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Matte Black

Finish Code: 622

Function: Entry

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Rhodes Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 194555120495
