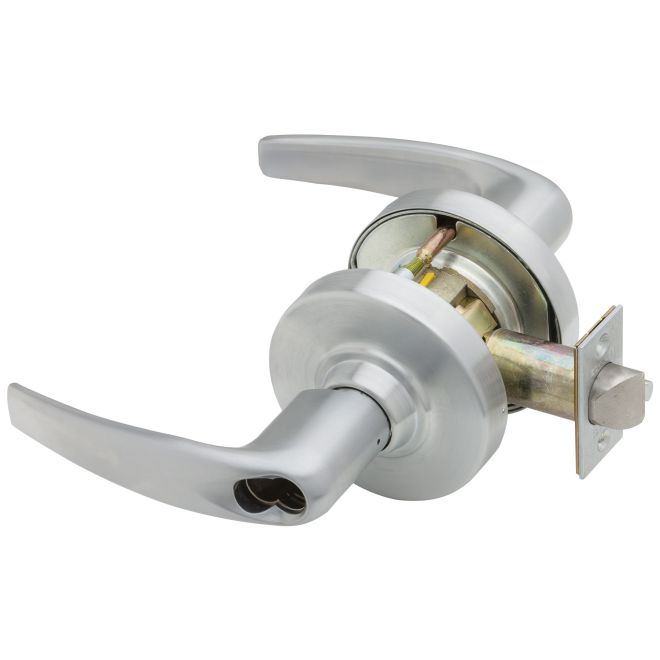

Schlage ND50BD ATH 626 Lock Cylindrical Lock

Schlage ND50BD ATH 626 Lock Cylindrical Lock
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

• Entry/Office, Push-Button Locking, Push-Button Locks Outside Lever Until Unlocked With Key or By Turning Inside Lever, Inside Lever is Always Free for Immediate Egress
• ANSI/BHMA Certified A156.2-2011
• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door
• No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
• No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
• No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
• Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
• Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
• Cast steel spindle construction exceeding 16 million cycles
• Withstood aggressive Schlage development testing including lever-snap and abusive cycling
• 31 mechanical functions
• 6 wired functions with:
• Autodetecting 12-24V DC input
• Switch-selectable EL/EU operation
• Modular request to exit (RX)
• 0.230A max/0.010A holding current
• Available in 10 finishes, 5 lever designs, and 2 rose designs
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
• Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Attributes

Ship via: Can Ship UPS

Alternate Codes: SCHND50BD-ATH626

Ansi Function: F82 – Entry

Ansi Function Description: Entry

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Mexico

Cylinder Type: SFIC Prep Less Core

Cylinders Present: Single Cylinder

Design: Athens

Door Application: Cylindrical Levers

Door Thickness: 1-5/8″ – 2-1/8″

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: 50-Entrance Office Lock

Function Family: Office

Grade: Grade 1

Hand: Not Handed

Handing: Reversible

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1″

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Design: Athens

Lever Knob: Lever

Lever Knob Design: ATH – Athens

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: Athens

Limited Warranty: 3 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Entrance/Office Lock

Manufacturer Function Description: Push-button locking. Push-button locks outside lever until unlocked with key or by turning inside lever. Inside lever is always free for immediate egress.

Maximum Door Thickness: 2-1/8″

Minimum Door Thickness: 1-5/8″

Num Pins: 6/7

Projection: 3-5/16″

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16″

Screws: Combination

Series: ND

Strike: ASA Strike

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: B

Structure Function: 50

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 626

Structure Outside Trim: ATH

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks
