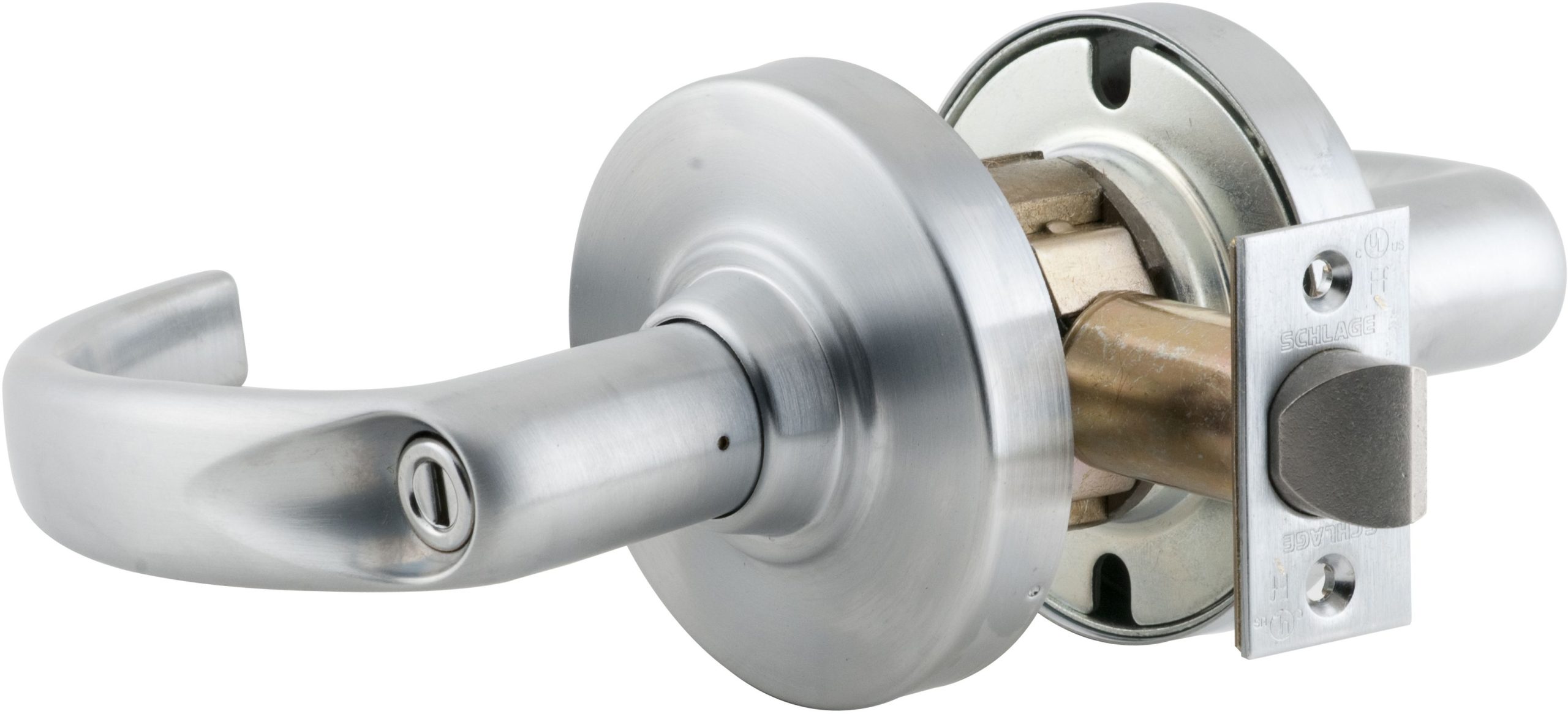

Schlage ND40SPA626OSOCC ND Series Privacy Sparta, 13-248 Latch, 10-025 Strike, Satin Chrome Finish

Schlage ND40SPA626OSOCC ND Series Privacy Sparta, 13-248 Latch, 10-025 Strike, Satin Chrome Finish

Schlage Commercial ND40SPA626OSOCC ND Series Privacy Sparta offers a robust and reliable locking solution designed for commercial spaces. This privacy lockset features a push-button locking mechanism that is easily operable from the outside with a small screwdriver, while the inside lever remains always free for immediate egress. Built to last, it meets the ANSI/BHMA Certified A156.2-2011 standard and is classified as Commercial Grade 1, ensuring it can withstand the demands of high-traffic environments. The lockset accommodates doors ranging from 1-5/8″ to 2-1/8″ and is UL Listed for use on 3-hour fire doors, providing peace of mind in terms of safety and compliance. Its satin chrome finish (Finish Code: 626) not only enhances its aesthetic appeal but also offers durability. The Sparta lever design and Rhodes rose escutcheon add a touch of elegance, while the 2-3/4″ backset ensures compatibility with various door installations. With a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, Schlage stands behind the quality of its products. The ND40SPA626OSOCC is an ideal choice for those seeking a balance of functionality, security, and style in their architectural door hardware solutions.

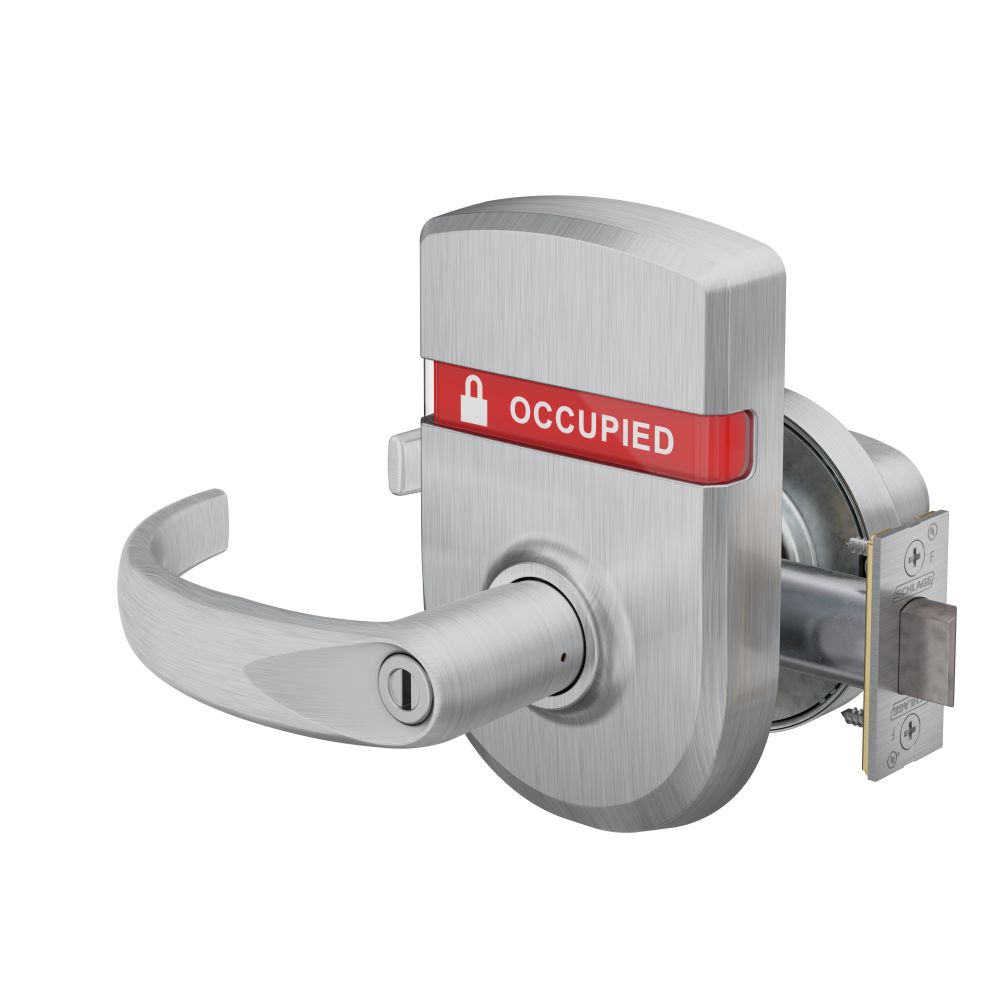

ND Series Privacy Sparta with 13-248 Latch 10-025 Strike and Outside Occupied Vacant Indicator Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door
• Privacy, Push-Button Locking, Can Be Opened From Outside with Small Screwdriver, Turning Inside Lever or Closing Door Releases Button, Inside Lever is Always Free for Immediate Egress

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Dimension: 3-7/16″ Rose with 4-15/16″ Lever and 3-1/2″ Projection

Door Range: 1-5/8″ to 2-1/8″

Finish: Satin Chrome

Finish Code: 626

Function: Privacy

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Sparta Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-09-26

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 194555233980
