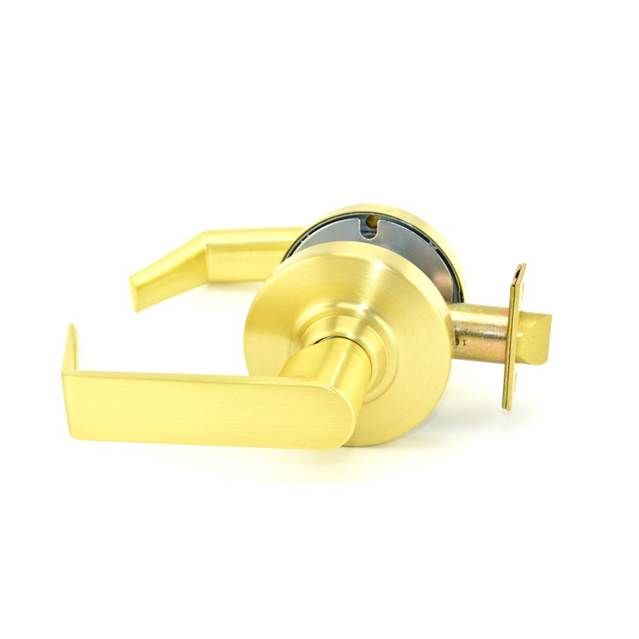

Schlage ND10RHO606 ND Series Passage Rhodes, 13-248 Latch, 10-025 Strike, Satin Brass Finish

Schlage ND10RHO606 ND Series Passage Rhodes, 13-248 Latch, 10-025 Strike, Satin Brass Finish

Schlage Commercial ND10RHO606 ND Series Passage Rhodes delivers exceptional security and reliability for various commercial applications. Designed for doors measuring between 1-5/8″ to 2-1/8″ thick, this passage lockset features both levers that remain unlocked, allowing for immediate egress while ensuring smooth access in high-traffic areas. The Rhodes lever design combines functionality with an elegant satin brass finish, offering a polished look that complements any environment. This lockset is ANSI/BHMA Certified A156.2-2011, ensuring it meets rigorous performance standards. It includes a 2-3/4″ backset and a 4-9/16″ lever projection, making it an ideal choice for commercial spaces. The ND10RHO606 is also UL Listed for 3-hour fire doors, providing peace of mind in safety regulations. Built from durable zinc base material, the ND Series lockset is backed by a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, ensuring long-lasting performance. The 1-1/8″ x 2-1/4″ latch faceplate and 4-7/8″ ANSI strike with a 1-1/4″ lip enhance its versatility and ease of installation. Choose Schlage Commercial ND10RHO606 for reliable security that stands the test of time.

ND Series Passage Rhodes with 13-248 Latch 10-025 Strike Satin Brass Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door
• Passage, Both Levers Always Unlocked, Inside Lever is Always Free for Immediate Egress

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Rhodes

Dimension: 3-7/16″ Rose with 4-9/16″ Lever and 2-15/16″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Satin Brass

Finish Code: 606

Function: Passage

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Rhodes Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-09-12

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 043156629220
