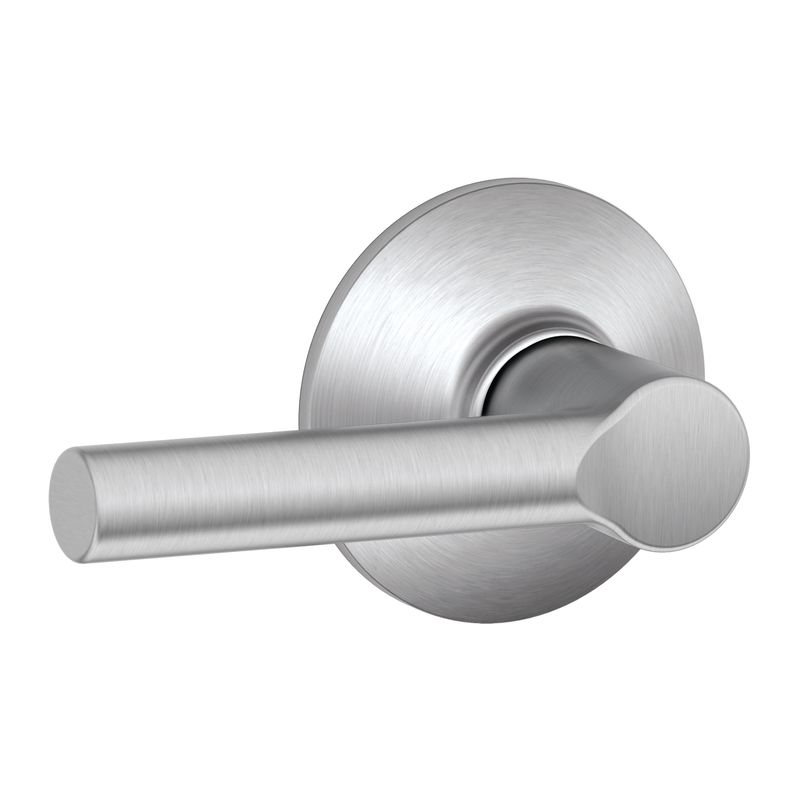

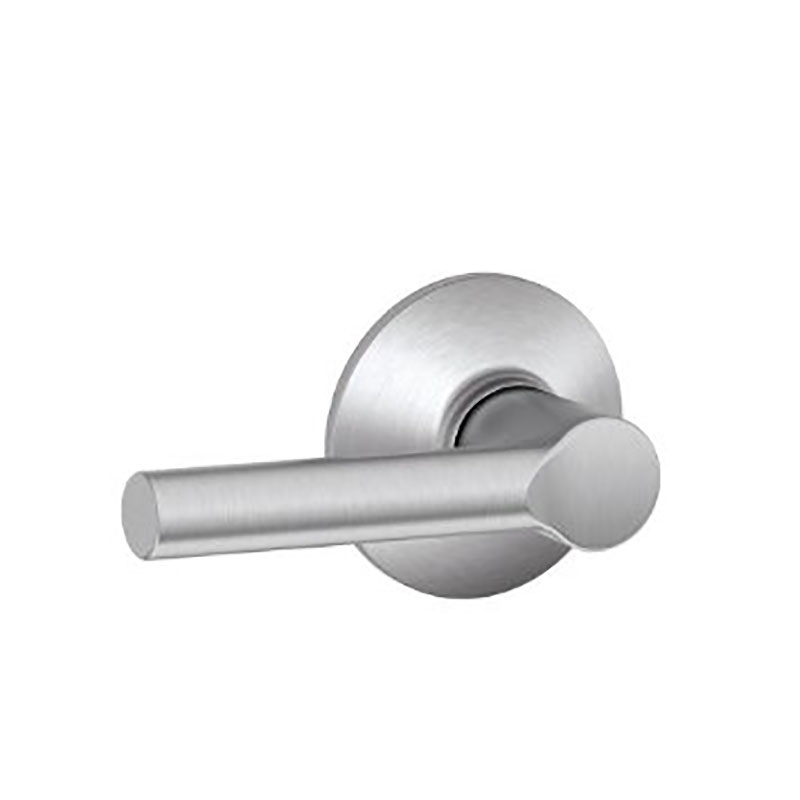

Schlage F10BRW626 Broadway Satin Chrome Lever Passage Lock with 16080 Latch 10027 Strike

Schlage F10BRW626 Broadway Satin Chrome Lever Passage Lock with 16080 Latch 10027 Strike

Schlage Residential F10BRW626 Broadway Lever Passage Lock with 16080 Latch and 10027 Strike in Satin Chrome Finish offers a perfect blend of functionality and style. Designed for doors ranging from 1-3/8″ to 1-3/4″ thick, this non-locking passage lock is ideal for closets and rooms where privacy is not a concern. The reversible handing allows for versatile installation, making it suitable for any door configuration. With an easy 3-step installation process that requires only a screwdriver, the F10BRW626 ensures a hassle-free setup. Its sturdy construction, crafted from quality zinc materials, guarantees exceptional security, while the certified commercial grade 2 rating provides peace of mind in both residential and light commercial applications. The Broadway lever design adds a contemporary touch, complemented by a sleek satin chrome finish that coordinates beautifully with plumbing and lighting fixtures. The lock features a 2-1/8″ crossbore size and comes with a round corner full lip strike, ensuring a seamless fit. Backed by a limited lifetime mechanical and finish warranty, the Schlage F10BRW626 is a reliable choice that combines durability, style, and ease of use for discerning homeowners and building professionals alike.

Broadway Lever Passage Lock with 16080 Latch and 10027 Strike Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Non-Locking – Ideal for Closets and Rooms Where Locking is Not Needed
• Reversible Handing
• Easy 3-Step Installation, Only a Screwdriver Needed
• Lifetime Mechanical & Finish Warranty
• Quality Materials and Construction for Exceptional Security
• Quality Finishes Coordinate with Plumbing and Lighting
• Certified Commercial Grade 2
• For 1-3/8″ to 1-3/4″ Doors
• Limited Lifetime Mechanical and Finish Warranty

Attributes

Ship via: Can Ship UPS

Ansi Function: F75 – Passage

Backset: Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8″ or 2-3/4″ Backset

Category: Mechanical Residential Locksets

Crossbore Size: 2-1/8″ Bore

Design: Broadway Lever

Dimension: 4-1/4″ Lever and 2-3/8″ Projection with 2-3/4″ Diameter Rose

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8 In. – 1-3/4 In.

Finish: Satin Chrome

Finish Code: 626

Finish Description: Satin Chrome

Function: F10-Hall and Closet

Function Family: Passage

Grade: Grade 2

Hand: Non-Handed

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1″ x 2-1/4″

Lever Knob Design: BRW – Broadway

Lever Knob Design Family: Straight Lever

Limited Warranty: Lifetime

Manufacturer Function Description: Both knobs/levers always unlocked.

Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty

Material: Zinc

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-09-10

Projection: 2-3/8″

Rose Escutcheon Design: Plymouth Rose

Screws: Combination

Series: F Series

Strike: Round Corner Full Lip Strike

Strike Dimension: 2-1/4″ x 1-5/8″ x 1-1/8″ Lip

Strike Height: 2-1/4″

Strike Number: 10-027

Strike Type: Full Lip Radius Strike

Strike Width: 1-5/8″

Subcategory: Residential Door Levers

Subtype: Door Levers

Type: Residential Locksets

Upc: 043156367849
