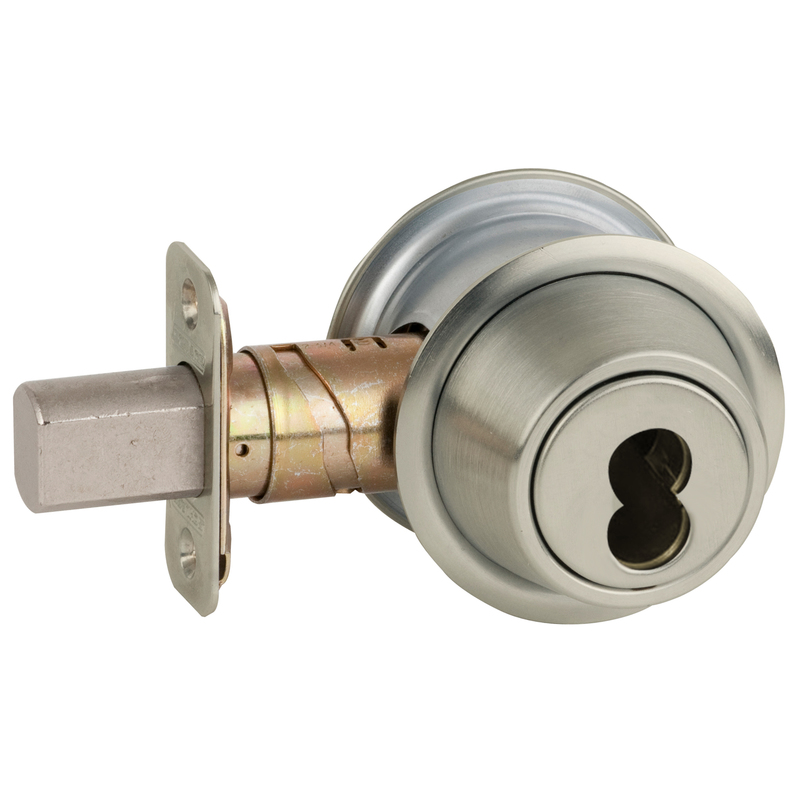

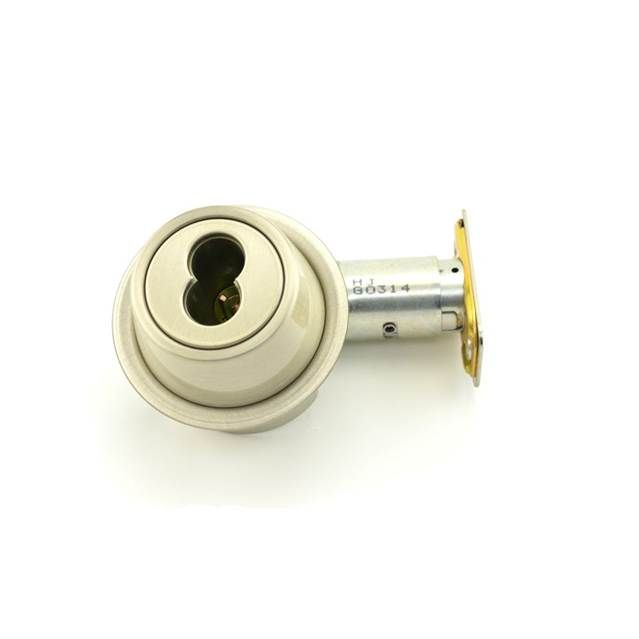

Schlage B560J619 Grade 2 Single Cylinder Deadbolt, Interchangeable Core, Satin Nickel Finish

Schlage B560J619 Grade 2 Single Cylinder Deadbolt, Interchangeable Core, Satin Nickel Finish

Schlage Commercial B560J619 Grade 2 Single Cylinder Deadbolt offers a robust solution for securing commercial spaces. Designed with durability and safety in mind, this deadbolt features a single cylinder mechanism that allows for operation by key from the outside or a turn unit from the inside, ensuring easy access without compromising security. Constructed to meet ANSI Certified A156.36 standards, the B560J619 is built for commercial use with a Grade 2 rating, providing peace of mind for property owners. The deadbolt is UL listed for three-hour fire doors, making it an excellent choice for areas requiring enhanced safety measures. With an adjustable backset of 2-3/8″ or 2-3/4″, it fits a wide range of door sizes from 1-3/8″ to 1-7/8″ thick. The satin nickel finish not only adds a modern aesthetic but also enhances corrosion resistance, ensuring longevity in high-traffic environments. This model includes a square corner deadbolt strike and a latch faceplate dimension of 1″ x 2-1/4″, providing a secure fit. Backed by a limited three-year mechanical warranty, the Schlage B560J619 stands out as a reliable choice for those seeking quality and security in their locking solutions.

Grade 2 Single Cylinder Deadbolt Less Full Size Interchangeable Core with 12287 Latch and 10094 Strike Satin Nickel Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Single Cylinder Deadbolt – Deadbolt Thrown or Retracted by Key from Outside or by Inside Turn Unit
• ANSI Certified A156.36
• 1-3/8″ to 1-7/8″ Door Range
• UL Listed for 3 Hour Fire Door
• Commercial Grade 2

Attributes

Ship via: Can Ship UPS

Ansi Function: E0152 – Single Cylinder Deadbolt

Backset: Adjustable 2-3/8″ or 2-3/4″ Backset

Bolt Protection: 1 In.

Category: Mechanical Commercial Locksets

Crossbore Size: 1-1/2″ or 2-1/8″ Bore

Cylinder Type: Schlage FSIC Less Core

Dimension: 2-5/8″ Diameter

Door Range: 1-5/8″ to 2″

Door Thickness: 1-5/8 In. – 2 In.

Dust Box: None

Finish: Satin Nickel

Finish Code: 619

Finish Description: Satin Nickel Plated Clear Coated

Function: 560-Single Cylinder Deadbolt Lock

Grade: Grade 2

Hazardous Material: NO

Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.

Latch Faceplate Dimension: 1″ x 2-1/4″ and 1″ Diameter

Latch Number: 12-288

Latch Type: Deadbolt

Lock Face Size: 2-1/4 In. x 1 In.

Manufacturer Warranty: Limited 3 Year Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Series: B500 Series

Strike: Square Corner Deadbolt Strike

Strike Dimension: 1-1/8″ x 2-3/4″

Strike Height: 2-3/4 In.

Strike Number: 10-094

Strike Type: Flat

Strike Width: 1-1/8 In.

Subcategory: Commercial Deadbolts

Subtype: Deadlock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL Listed for 3 Hour Fire Door
