Richelieu WEBKIT1243033 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1243033 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1243033 ATOM puck LED for Under Cabinet Lighting is designed to elevate your kitchen and living spaces with efficient illumination. This versatile lighting solution offers multiple control options including Wi-Fi App, Touch Me Dimmer, and Decora Bluetooth Wall Dimmer, ensuring user-friendly operation tailored to your needs. The power supply supports optional plug-in installation with a detachable cable for added convenience. Recommended for 48″ counters, the Atom puck lights can be easily installed with additional units every 15″ for longer surfaces. It features a sleek satin nickel finish and can be installed either recessed or surface-mounted using a trim ring (sold separately). The pre-wired 78″ power cable simplifies setup, while extension cables are available in 20″, 40″, and 78″ lengths for flexible installation.With a color rendering index (CRI) of 90 and a neutral white light at 4000K, the Atom provides exceptional lighting quality for accent and task applications. The unit operates at 3 watts, delivering an impressive luminous flux of 195 lumens with an efficiency of 65 lm/W. Compliant with various safety standards, the Atom puck LED is an ideal choice for enhancing any modern space.

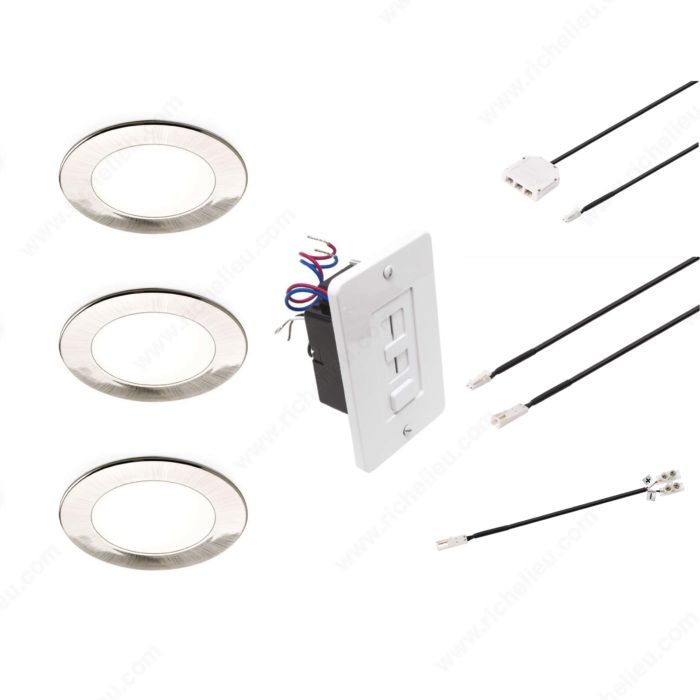

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

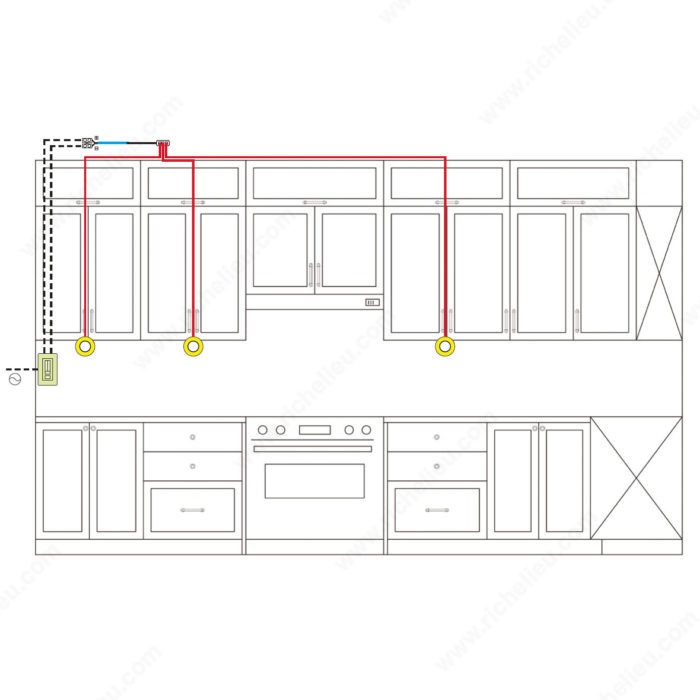

– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Touch / Wall

Product #: WEBKIT1243033

Product №: WEBKIT1243033

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
