Richelieu WEBKIT1243032 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1243032 ATOM Under Cabinet LED Puck Light – Installation Guide

Richelieu WEBKIT1243032 ATOM puck LED for Under Cabinet Lighting offers an innovative lighting solution that seamlessly combines functionality and style. This versatile puck light is designed for easy installation, featuring multiple control options, including Wi-Fi app control, touch dimmer, Bluetooth wall dimmer, and Switchex® wall dimmer, allowing you to tailor your lighting experience to your preferences. Ideal for 48″ counters, the Atom puck light can be added every 15″ for longer spaces, ensuring optimal illumination. It is adaptable for both recessed and surface mounting with an optional trim ring (sold separately). The pre-wired 78″ power cable simplifies setup, while extension cables are available in various lengths to accommodate your needs.With a color rendering index (CRI) of 90 and a neutral white light at 4000 K, the Atom delivers excellent visibility for tasks and accent lighting. Designed for under-cabinet applications in kitchens, living rooms, and commercial settings, this sleek, contemporary fixture boasts a luminous efficiency of 65 lm/W and a luminous flux of 195 lumens. Constructed with durability in mind, the Atom is certified by UL, ETL, ULC, CE, and cULus, ensuring compliance with safety standards. Elevate your lighting design with the Richelieu ATOM puck LED, blending modern aesthetics with practical functionality.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)

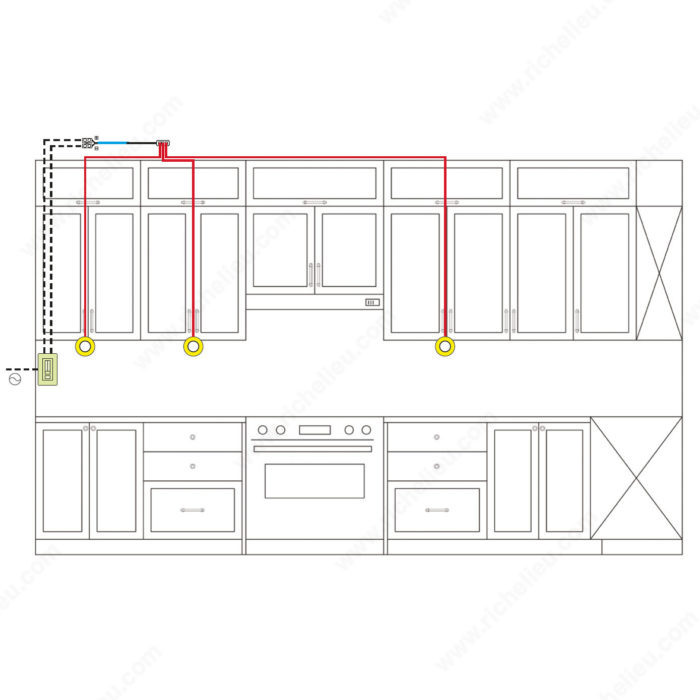

The benefits of this set are:
– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: White

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Touch / Wall

Product #: WEBKIT1243032

Product №: WEBKIT1243032

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
