Richelieu WEBKIT1243030 ATOM LED Puck Light for Under Cabinet Lighting

Richelieu WEBKIT1243030 ATOM LED Puck Light for Under Cabinet Lighting

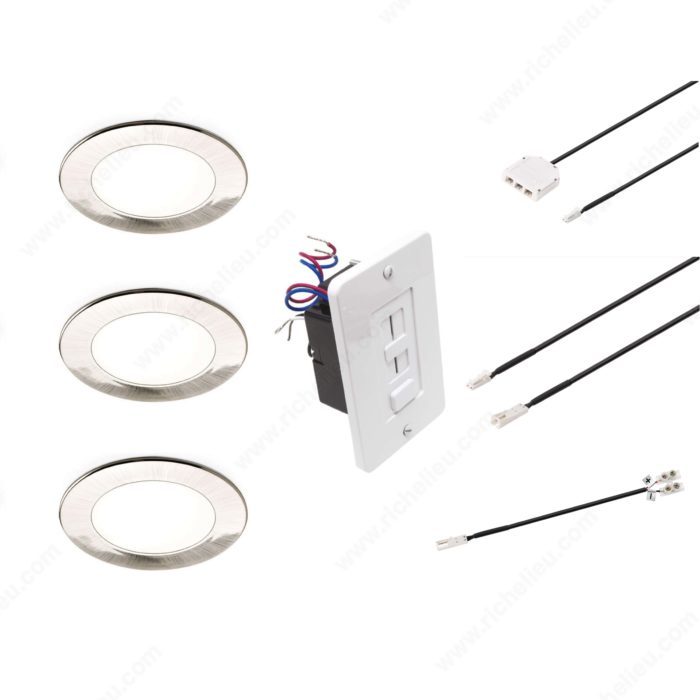

Richelieu WEBKIT1243030 ATOM puck LED for Under Cabinet Lighting is the ideal solution for enhancing both functionality and aesthetics in kitchens, living rooms, and commercial spaces. Designed with versatility in mind, this puck light can be controlled via various methods, including a Wi-Fi app, a touch dimmer, or a Decora Bluetooth wall dimmer. The installation is made simple with a detachable power cable, while the pre-wired 78″ power cable ensures ease of setup. This kit is recommended for a 48″ counter, and for longer setups, simply add a puck light every 15″ on center. The Atom puck can be recessed or surface-mounted using a trim ring, which is sold separately. With a color rendering index (CRI) of 90 and a warm white light at a color temperature of 3000 K, it delivers an inviting ambiance while providing effective task lighting. Additional features include an impressive luminous efficiency of 60 lm/W and a luminous flux of 180 lumens. The design meets various safety standards, including UL and CE certifications. With its contemporary style and satin nickel finish, the Richelieu WEBKIT1243030 ATOM puck LED seamlessly integrates into any decor while elevating your lighting experience.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

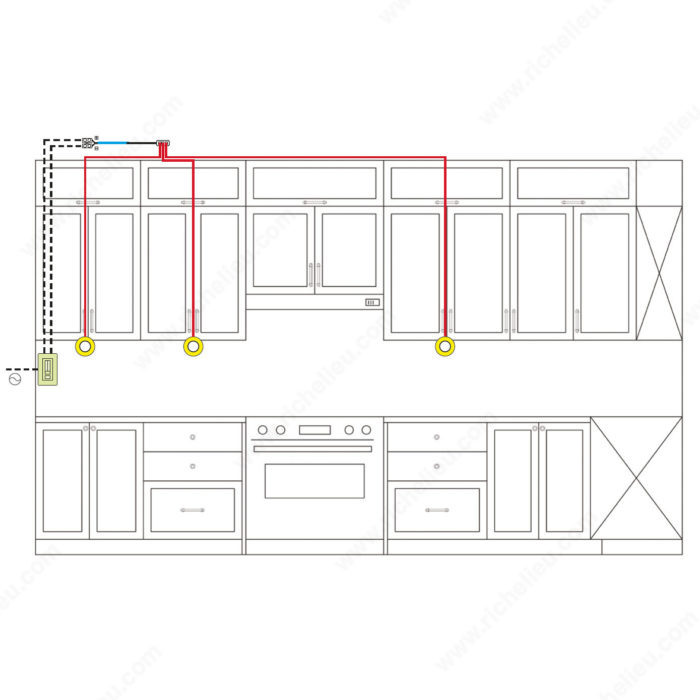

– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 3000 K

Light Color: Warm White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 60 lm/W

Luminous Flux: 180 Lumen

Mounting: Recessed

Operation: Touch / Wall

Product #: WEBKIT1243030

Product №: WEBKIT1243030

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
