Richelieu WEBKIT1243029 ATOM puck LED for Under Cabinet Lighting offers a versatile solution for illuminating your kitchen, living room, or commercial spaces. This fixture allows you to select from various control options including a Wi-Fi app, touch dimmer, or Decora Bluetooth wall dimmer, providing a customized lighting experience. The power supply supports optional plug-in installation with a detachable power cable, making setup straightforward. Designed for optimal functionality, this lighting kit is recommended for a 48″ counter, with the option to add additional puck lights every 15″ for longer counters. The Atom can be either recessed or surface-mounted using a trim ring (sold separately). With a pre-wired 78″ power cable and available extension cables in lengths of 20″, 40″, and 78″, installation flexibility is at your fingertips.Emitting a neutral white light at 4000 K with a Color Rendering Index of 90, the Atom provides excellent color accuracy. With a luminous efficiency of 65 lm/W and a total luminous flux of 195 lumens, it effectively enhances your space. Compliance with UL, ETL, ULC, CE, and cULus standards ensures safety and reliability. Upgrade your under-cabinet lighting with the Richelieu ATOM for style and performance.

ATOM puck LED for Under Cabinet Lighting – Started Guide

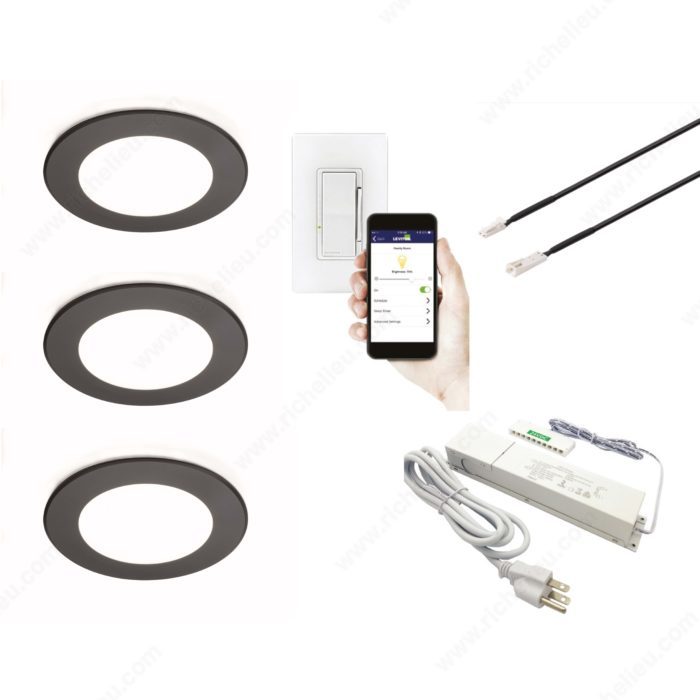

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

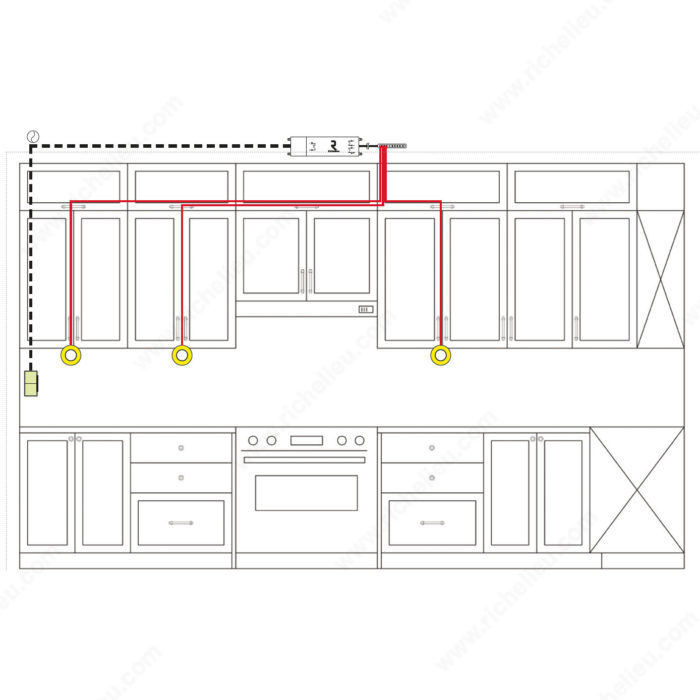

– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Bluetooth / Dimmer

Diameter: 2 11/16 in*

Finish: Black

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Smart Technology (Bluetooth) / Wall

Product #: WEBKIT1243029

Product №: WEBKIT1243029

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
