Richelieu WEBKIT1243028 ATOM Under Cabinet LED Puck Light Installation Guide

Richelieu WEBKIT1243028 ATOM Under Cabinet LED Puck Light Installation Guide

Richelieu WEBKIT1243028 ATOM puck LED for Under Cabinet Lighting is designed to elevate the functionality and aesthetic of your spaces. This versatile lighting solution offers multiple control types, including a Wi-Fi app, touch dimmer, Decora Bluetooth wall dimmer, and Switchex® wall dimmer/driver, allowing for seamless integration into any home or commercial environment. Recommended for 48″ counters, the ATOM puck light is perfect for both task and accent lighting. For longer counters, simply add another puck light every 15″ CTC. The fixture can be recessed or surface-mounted using a trim ring (sold separately), making it adaptable to your design needs. Equipped with a pre-wired 78″ power cable, it supports extension cables in lengths of 20″, 40″, and 78″, ensuring flexibility in installation. With a color rendering index (CRI) of 90 and a neutral white light at 4000 K, the ATOM provides excellent visibility while enhancing the overall ambiance. It features a sleek satin nickel finish, measures 2 11/16″ in diameter, and operates on 24 V with a power consumption of just 3 W. Built to comply with UL, ETL, ULC, CE, and cULus standards, the ATOM puck LED is a reliable choice for under-cabinet lighting.

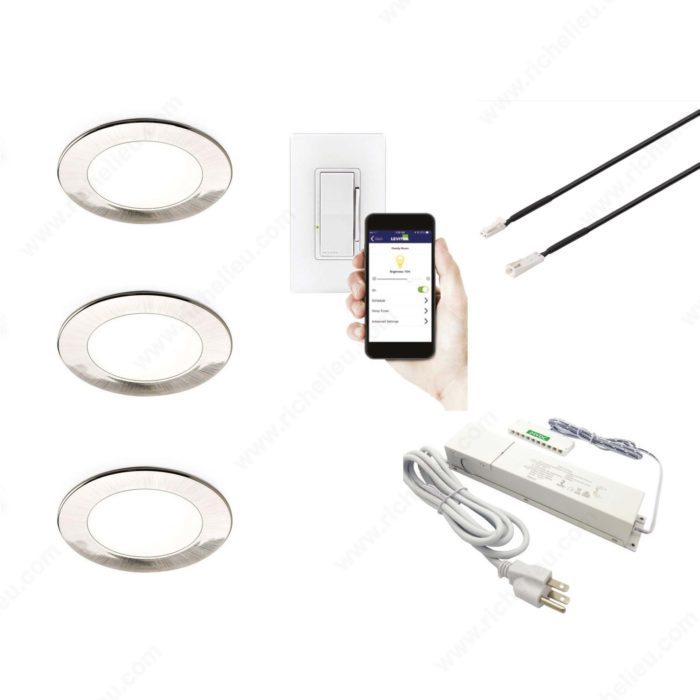

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Bluetooth / Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Smart Technology (Bluetooth) / Wall

Product #: WEBKIT1243028

Product №: WEBKIT1243028

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
