Richelieu WEBKIT1243027 ATOM Under Cabinet LED Puck Light Installation Guide

Richelieu WEBKIT1243027 ATOM Under Cabinet LED Puck Light Installation Guide

Richelieu WEBKIT1243027 ATOM puck LED for Under Cabinet Lighting is an innovative solution designed to enhance your kitchen, living room, or commercial space. This versatile lighting kit is ideal for 48″ counters, with the option to add additional puck lights every 15″ for longer setups.The Atom can be conveniently recessed or surface-mounted using a trim ring (sold separately), providing flexibility in installation. With a sleek white finish and a compact diameter of 2 11/16 inches, it seamlessly blends with modern aesthetics. The pre-wired 78″ power cable simplifies setup, while extension cables in various lengths (20″, 40″, and 78″) ensure adaptability for different configurations. This product offers multiple control options, including a Wi-Fi app, touch dimmer, and Bluetooth wall dimmer, allowing for easy customization of your lighting experience. Featuring a Color Rendering Index (CRI) of 90 and a luminous flux of 195 lumens, it delivers neutral white light at a Kelvin temperature of 4000 K, perfect for accent and task lighting. Built to meet rigorous standards (UL, ETL, CE, cULus), the Atom puck LED is both reliable and stylish, making it an excellent choice for anyone looking to elevate their interior lighting design.

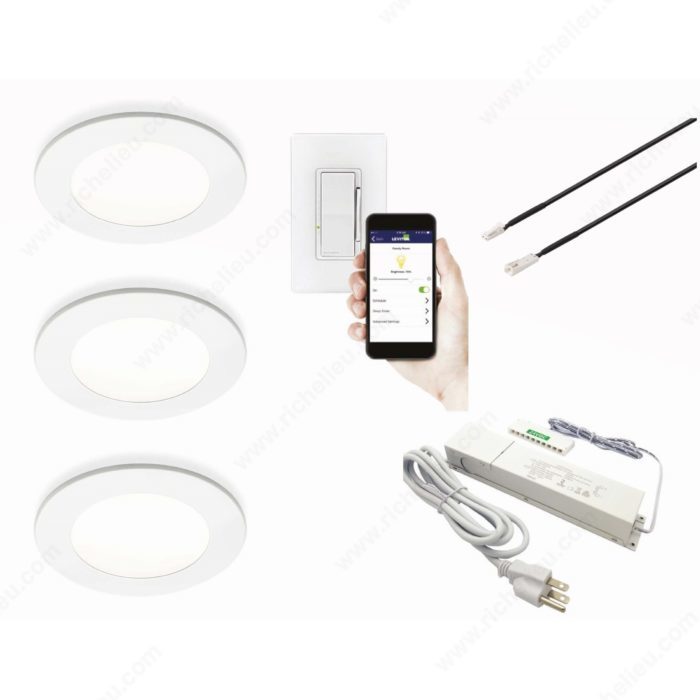

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

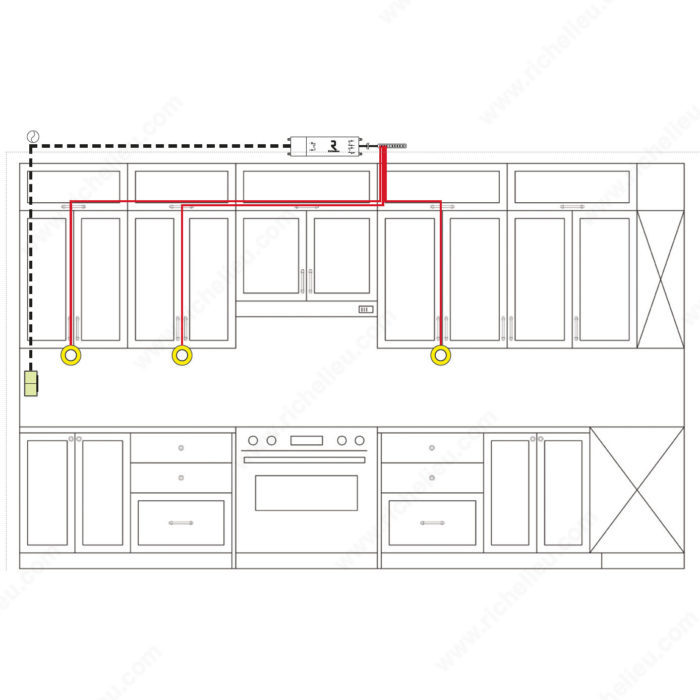

– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Bluetooth / Dimmer

Diameter: 2 11/16 in*

Finish: White

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 4000 K

Light Color: Neutral White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 65 lm/W

Luminous Flux: 195 Lumen

Mounting: Recessed

Operation: Smart Technology (Bluetooth) / Wall

Product #: WEBKIT1243027

Product №: WEBKIT1243027

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
