Richelieu WEBKIT1243025 ATOM LED Under Cabinet Puck Light – Start Guide

Richelieu WEBKIT1243025 ATOM LED Under Cabinet Puck Light – Start Guide

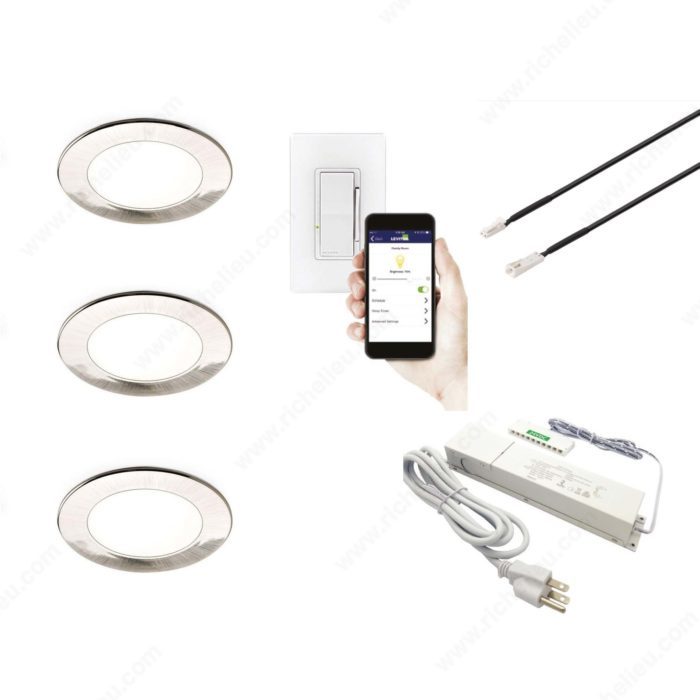

Richelieu WEBKIT1243025 ATOM puck LED for Under Cabinet Lighting offers an exceptional solution for enhancing your kitchen, living room, or commercial space with stylish and functional illumination. Designed for versatility, this puck light can be controlled via various options, including a Wi-Fi app, touch dimmer, or Bluetooth wall dimmer, ensuring seamless integration into your existing setup. Recommended for a 48-inch counter, the Atom can be easily installed either recessed or surface-mounted, utilizing a trim ring (sold separately). With a luminous efficiency of 60 lm/W and a warm white color temperature of 3000 K, it provides excellent task and accent lighting with a luminous flux of 180 lumens. The satin nickel finish complements contemporary aesthetics, making it an ideal choice for modern interiors. The Atom features a pre-wired 78-inch power cable and supports extension cables in lengths of 20, 40, and 78 inches. It is important to adhere to local electrical codes during installation, and a maximum distance of 24 feet from the light to the power supply is recommended. Certified by UL, ETL, ULC, CE, and cULus, this product ensures safety and reliability for any application. Elevate your lighting experience with Richelieu’s ATOM puck LED today.

ATOM puck LED for Under Cabinet Lighting – Started Guide

Select your control type:
– Wi-Fi App.
– Touch Me Dimmer
– Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
– Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
– Kits recommended for a 48″ counter.
– For longer counters, add a puck light every 15″ CTC.
– The Atom can be recessed or surface mounted using the trim ring (sold separately).
– 78″ power cable is pre-wired to the Atom.
– Extension cables are available in 20″, 40″ and 78″.
– Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.

Attributes

Ship via: Can Ship UPS

Application: Kitchen, Living Room, Commercial, Furniture

Bore Hole: 2 1/4 in*

CRI ( Color Rendering Index): 90

Compatibility: Micro 24

Connection Type: Micro 24

Control System: Bluetooth / Dimmer

Diameter: 2 11/16 in*

Finish: Satin Nickel

Group: LED Group A, LED 24 V dc Exclusive

Height: 11/32 in*

IP: IP20

Kelvin Color Temperature ( K): 3000 K

Light Color: Warm White

Lighting: Accent, Task

Lighting Type: LED

Location: Under Cabinet

Luminaire: Fixed Spots

Luminous Efficiency: 60 lm/W

Luminous Flux: 180 Lumen

Mounting: Recessed

Operation: Smart Technology (Bluetooth) / Wall

Product #: WEBKIT1243025

Product №: WEBKIT1243025

Recessed Depth: 5/16 in*

Standards and Certifications: UL, ETL, ULC, CE, cULus

Style: Contemporary

Tension ( V): 24 V

Watts: 3 W
