Richelieu TSTMT3MF6134 CS Double and Triple CaviTrack is a versatile ceiling mount track system designed specifically for the CS Door Collection. This product offers both double and triple sliding door capabilities, making it a perfect choice for spaces that require flexible configurations. Available in popular pre-cut lengths, the tracks can be conveniently surface or recess mounted to the ceiling, accommodating various installation preferences. Designed for doors with thicknesses of 1 3/8 inches (35 mm) and 1 3/4 inches (45 mm), the CaviTrack supports a substantial load capacity of 500 pounds, ensuring reliable performance for wooden doors. With an overall length of 72 inches and a width of 6 27/64 inches, the track system is engineered for optimal functionality, allowing for smooth straight sliding and movable wall applications. The upper roller position and pre-drilled holes simplify installation, while the anodized aluminum finish provides both durability and a sleek aesthetic. Whether you’re working on a residential project or a commercial space, the Richelieu TSTMT3MF6134 offers a sophisticated solution for enhancing accessibility and design. Elevate your interior spaces with this high-quality architectural hardware, compatible with the CS Door Collection.

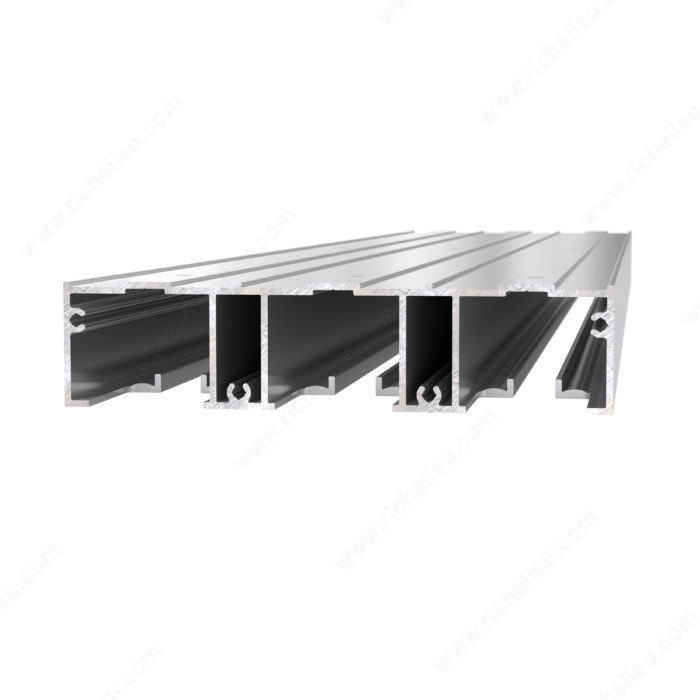

CS Double and Triple CaviTrack

CS double and triple CaviTrack ceiling mount tracks for the Door Collection Series.
Features:
– Offered in popular pre-cut lengths for different CS sliding door systems
– Can be surface or recess mounted to the ceiling
– For 1 3/8 in (35 mm) and 1 3/4 in (45 mm) thick doors

Attributes

Ship via: Can Ship UPS

Brand: Cavity Sliders

Compatible with: CS Door Collection

Detailed Door Movement: Single Sliding

Door Installation: Top Hung

Door Material: Wood

Door Movement: Straight Sliding, Movable Wall

Door Position: Inset/Inlay

Door Thickness: 1 3/4 in

Finish: Anodized Aluminum

Length – Overall Dimensions: 72 in

Load Capacity: 500 lb

Manufacturing Material: Aluminum

Material: Aluminum

Number of Doors: 3

Overall Height: 1 15/32 in

Overall Length: 72 in

Packaging Format: Bulk

Pre-drilled: Yes

Product #: TSTMT3MF6134

Product Type: Track

Product number: TSTMT3MF6134

Product type: Track

Product №: TSTMT3MF6134

Roller Position: Upper

Running Track Fixing: Surface and Recessed

Track Finish: Anodized

Track Length: 72 in

Track Material: Anodized Aluminum

Track Mounting: Ceiling Mount

Track Type: Box Track

Track type: Box Track

Unit: Length

Weight Capacity per Door: 500 lb

Weight Capacity per Panel: 500 lb

Width: 6 27/64 in
