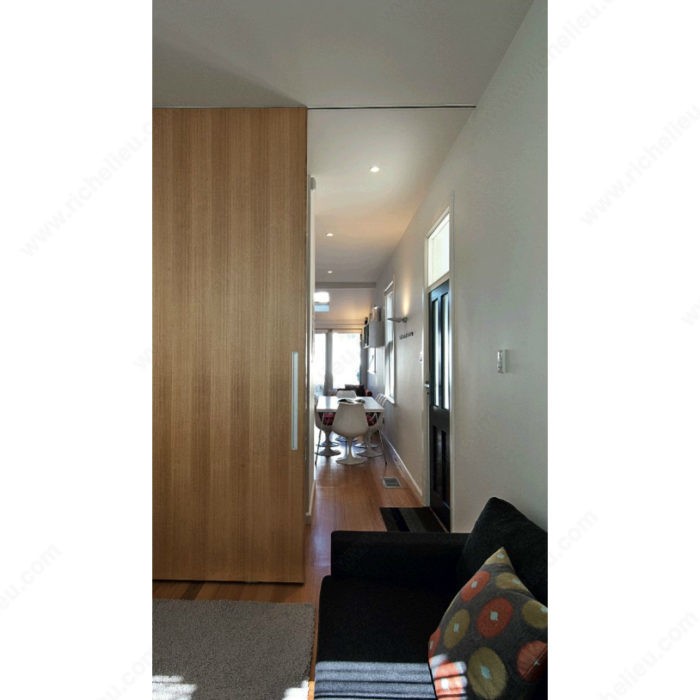

Richelieu TSFH112 CS FH Recessed Ceiling Track is a robust aluminum track system designed to support the smooth operation of sliding doors while maintaining an unobtrusive appearance. This specialized track accommodates ceiling boards ranging from 1/2 inch (12.7 mm) to 3/4 inch (19.05 mm) thick, allowing for a clean, concealed installation. Engineered for heavy-duty performance, the TSFH112 can support doors weighing up to 500 lb (227 kg) each, making it an ideal choice for standard access doors in both residential and commercial settings. The track features pre-drilled mounting holes for easy installation, and its anodized aluminum finish can be painted to match the ceiling color for a seamless look. Compatible with the M6, M8, and SofStop hardware series, this ceiling-mounted box track allows for single sliding door movement, with a maximum door width of 72 inches. With a total length of 144 inches and an overall height of 1 27/64 inches, it provides a discreet yet functional solution for your space. The upper roller position enhances the smoothness of operation, ensuring reliable performance with every use.Elevate your interior design while enjoying the benefits of sturdy, efficient door functionality with the Richelieu TSFH112 Recessed Ceiling Track.

CS FH Recessed Ceiling Track

The CS FH Recessed Ceiling Track is a specialized aluminum track series designed with side fins to accept various ceiling boards 1/2 in (12.7 mm) to 3/4 in (19.05 mm) thick for a concealed look.
Features:
– For doors weighing up to 500 lb (227 kg) each
– Track can be painted to match ceiling color
– Compatible with the M6, M8, and SofStop hardware series
– Pre-machined mounting holes

Attributes

Ship via: No UPS – Common Carrier Only

Application: Standard Access Door

Brand: Cavity Sliders

Compatible with: CS Door Collection, Cavity Sliders

Detailed Door Movement: Single Sliding

Door Installation: Top Hung

Door Movement: Straight Sliding

Door Position: Inset/Inlay

Door Width: Max. 72 in

Finish: Aluminum

Length – Overall Dimensions: 144 in

Load Capacity: 500 lb

Manufacturing Material: Anodized Aluminum

Material: Anodized Aluminum

Overall Height: 1 27/64 in

Overall Length: 144 in

Packaging Format: Bulk

Pre-drilled: Yes

Product #: TSFH112

Product Type: Track

Product number: TSFH112

Product type: Track

Product №: TSFH112

Roller Position: Upper

Running Track Fixing: Recessed

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Track Finish: Anodized

Track Length: 144 in

Track Material: Anodized Aluminum

Track Mounting: Recessed

Track Type: Box Track

Track type: Box Track

Weight Capacity per Panel: 500 lb

Width: 3 35/64 in
