Richelieu SH3SQ360H900 Riveo Square Header Mount Pivot Hinge

Richelieu SH3SQ360H900 Riveo Square Header Mount Pivot Hinge

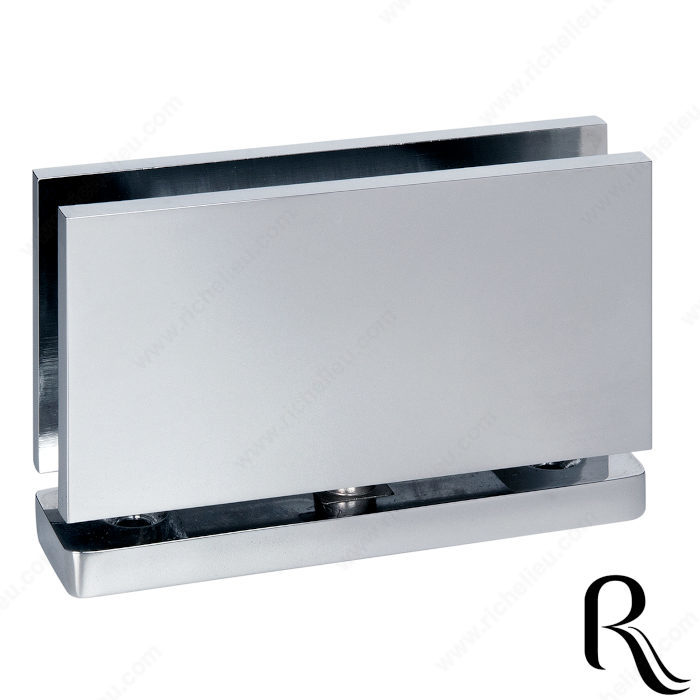

Richelieu SH3SQ360H900 Riveo Square Pivot Hinge – Header Mount offers a versatile solution for your door and panel installations with its 360° pivot capability. Designed for both standard and header mounting configurations, this hinge can accommodate innovative design choices, such as creating full floor-to-ceiling doors. Its reversible nature allows for easy installation at either the top or bottom, providing flexibility in various applications, including corner showers and standard doors. Constructed from solid brass with a stainless steel pin and spring, this hinge ensures durability and a refined finish in matte black. It is engineered with value in mind, making it an excellent choice for multi-unit and large-scale projects. The hinge supports a maximum glass weight of 99.2 lbs when using two hinges and accommodates glass thicknesses ranging from 5/16 to 13/32 inches, making it suitable for a variety of glass installations. Additionally, the design allows for inset mounting from the wall, providing enhanced clearance for towel racks and other accessories. With a maximum glass width of 31 inches per two hinges, the Richelieu Riveo Square Pivot Hinge is an ideal choice for professionals seeking functional elegance in their projects.

Riveo Square Pivot Hinge – Header Mount

This 360° pivot hinge is available in Standard and Header Mounting configurations. Standard pivot hinges are reversible for top or bottom installation, allowing for the creation of full floor-to-ceiling doors as well as for pairing with other top mounted pivot hinges.
Pivot hinges can be inset from the wall to provide better clearance for towel racks and other accessories.
These hinges are value engineered, making them ideal for multi-unit and large scale projects.

Attributes

Ship via: Can Ship UPS

Angle: 360°

Application: Corner Shower, Door, Door and Panel

Brand: Riveo

Collection: Riveo

Finish: Matte Black

Glass Thickness: 5/16 to 13/32 in*

Hinge Type: Standard

Material: Solid Brass/Stainless Steel Pin & Spring

Max. Glass Weight for 2 Hinges: Max. 99.2 lb*

Max. Glass Width for 2 Hinges: Max. 31 in*

Mounting Method: Header Mount

Product #: SH3SQ360H900

Product №: SH3SQ360H900

Style: Square

Unit 1: case – 20

Usage: Regular
