Richelieu CSS4K2680 CS Cavity Sliders Pocket Door Frame is expertly designed for single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg), making it ideal for a range of residential, commercial, and institutional applications. Constructed from sturdy, precut double-wall aluminum, this pocket frame supports standard 2 x 4 wood and metal wall stud construction, accommodating doors from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall.For specialized needs, a special-order frame is available for doors up to 120 in (3.05 m) tall. Custom options allow for adjustments in width and height to meet specific project requirements. The low-profile upper track forms part of the pocket frame structure, ensuring a seamless appearance. Installation is straightforward and cost-effective, aided by trim clips that enable easy press-on mounting of door jamb trim. The CSS4K2680 is compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately) and supports 1 3/8 to 1 3/4 in thick wooden doors, enhancing functionality and aesthetics. For 2 x 6 wall construction, refer to the CS Ultimate Pocket Door Frame. Elevate your space with this versatile pocket door solution.

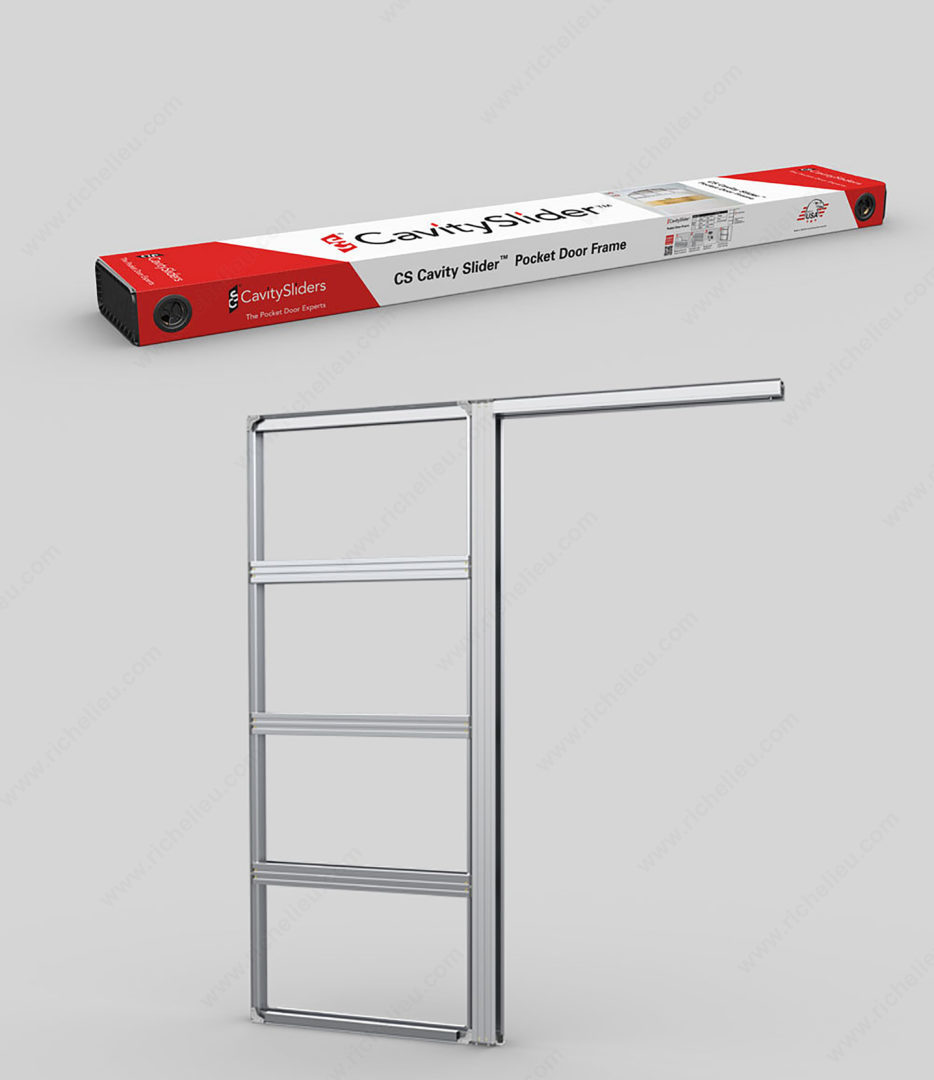

CS Cavity Sliders Pocket Door Frame

The CS Cavity Sliders Pocket Door Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
– Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall
– Special-order frame available for doors 36 in (914 mm) wide and up to 120 in (3.05 m) tall
– Frames can be custom cut to accommodate other door widths and heights according to project needs
– Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
– Low profile upper track is part of the upper structure of the pocket frame
– Trim clips for easy press-on mounting of door jamb trim
– Simple, flexible, and low-cost installation
Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
IMPORTANT: For 2 x 6 wall construction, reference the CS Ultimate Pocket Door Frame.

Attributes

Ship via: No UPS – Common Carrier Only

Application: Standard Access Door, Pocket Door

Brand: Cavity Sliders

Compatible with: Cavity Sliders

Detailed Door Movement: Single Sliding, Pocket Door

Door Height: Max. 96 in

Door Installation: Top Hung

Door Material: Wood

Door Movement: Pocket Door

Door Position: Pocket Door

Door Thickness: 1 3/8 to 1 3/4 in

Door Width: 24 to 30 in

Length – Overall Dimensions: 60 in

Load Capacity: 198 to 500 lb*

Manufacturing Material: Aluminum

Material: Aluminum

Number of Doors: 1

Overall Length: 60 in

Packaging Format: Box

Product #: CSS4K2680

Product Type: Pocket Door Frame Structure

Product number: CSS4K2680

Product type: Pocket Door Frame Structure

Product №: CSS4K2680

Roller Position: Upper

Running Track Fixing: Recessed

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Track Length: 60 in

Track Material: Aluminum

Track Mounting: Ceiling Mount

Unit: Set

Weight Capacity per Panel: 500 lb
