Richelieu 87SFM004171 180 Sleeve Over Glass Clamp

Richelieu 87SFM004171 180 Sleeve Over Glass Clamp

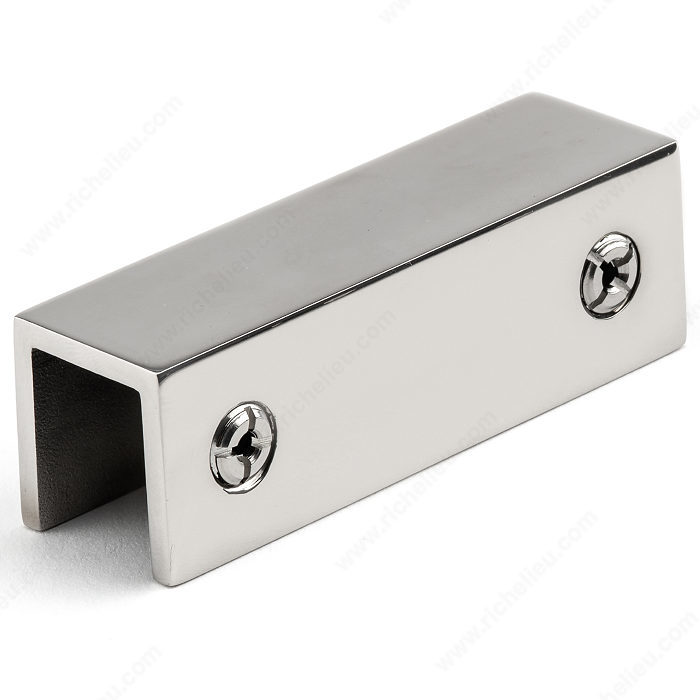

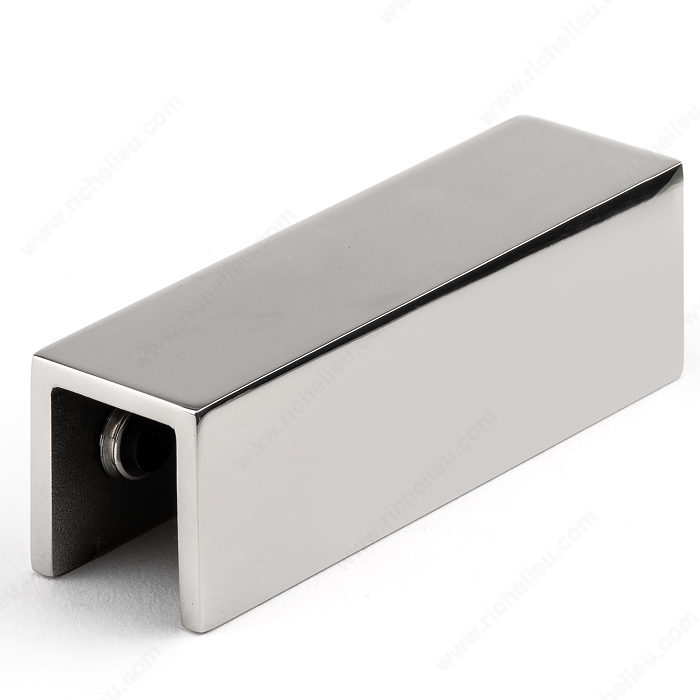

Richelieu 87SFM004171 180° “Sleeve Over” Glass Clamp is designed to provide robust support for glass panels with its innovative sleeve over design that effectively covers shear forces. This clamp requires no glass fabrication, streamlining the installation process for fixed screens, doors, and panels. Secured with a nylon-tipped Allen screw, it ensures a reliable hold without compromising aesthetic appeal. Crafted from bright polished stainless steel (304), this clamp not only boasts durability and strength but also adds a touch of elegance to any installation. With a height of 31/32 inches, a length of 3 5/32 inches, and a width of 7/8 inches, it accommodates glass thicknesses ranging from 5/16 to 15/32 inches, making it versatile for various applications.For safety and performance, it is crucial to use tempered glass and adhere to the manufacturer’s load limits. Installation should be performed by qualified personnel, ensuring that the product is properly set in suitable materials. Maintenance is straightforward-simply clean with a soft cloth and non-abrasive soap or ammonia. Richelieu emphasizes the importance of following included instructions and safety guidelines for optimal results.

180 “Sleeve Over” Glass Clamp

180° “Sleeve Over” Glass Clamp covers shear forces placed on panel. No glass fabrication required. Secured in place with nylon tipped Allen screw. Not to be used in place of headers or support bars.

Important information

For safety purposes, use tempered glass.
The use of power tools during installation may damage the hinges and decorative hardware.
The glass must be shaped according to the section plane provided in the box.
Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Never use a spray lubricant on this product.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always use the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project. Installation must be done by qualified personnel. Always make sure that the product is properly installed using suitable fixings to the support material. Never exceed the load or maximum size recommended by the manufacturer. Never use a spray lubricant on this product.

Attributes

Ship via: Can Ship UPS

Application: Fixed Screen, Door and Panel

Brand: Riveo

Color: Gray and Chrome

Finish: Glossy Polished

Glass Thickness: 8 to 12 mm

Height: 25 mm

Length: 80 mm

Manufacturing Material: Stainless Steel: 304

Material: Stainless Steel: 304

Product #: 87SFM004171

Product number: 87SFM004171

Product №: 87SFM004171

Style: Square

Unit 1: case – 50

Width: 22 mm
