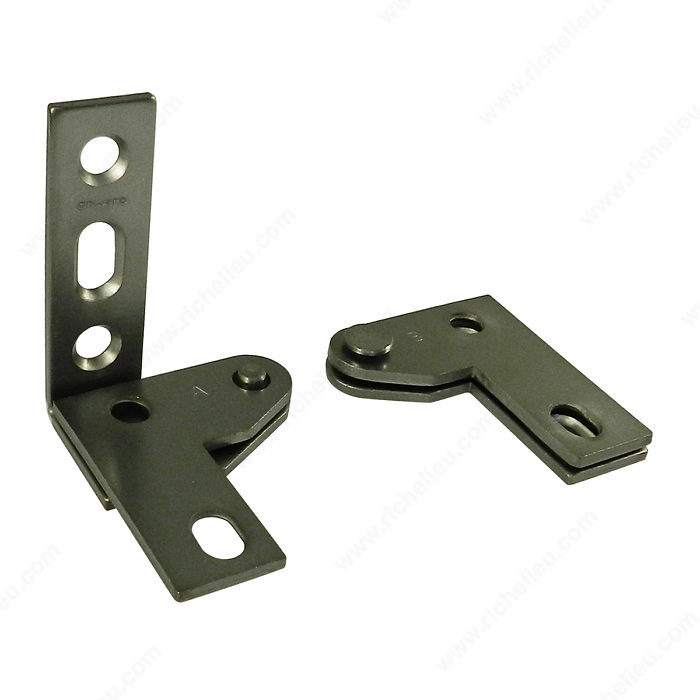

Richelieu 242341BCLPH Flush/Recessed Door Pivot Hinge

Richelieu 242341BCLPH Flush/Recessed Door Pivot Hinge

Richelieu 242341BCLPH Pivot Hinge for Flush/Recessed Door offers exceptional functionality for both flush and recessed doors, ensuring a seamless installation experience. Designed for effortless use, this hinge comes with pre-mounted top header and bottom side frame, allowing doors to be installed from floor to ceiling with ease. The elongated screw holes facilitate precise alignment, making installation straightforward for professionals and knowledgeable homeowners alike. This pivot hinge supports a load capacity of up to 75 lbs, accommodating doors with a thickness ranging from 1 1/8 to 1 3/8 inches. The left-hand opening design enhances versatility in various applications. Bushings at the pivot point ensure smooth and silent operation, making it ideal for both residential and commercial settings. Crafted in a sleek brushed chrome finish, the Richelieu pivot hinge not only delivers reliable performance but also adds a modern touch to any space. The hinge opens to an impressive 180°, providing ample access while maintaining a robust build with a gauge of 0.131 inches. Installation is simplified with easily separable leaves in the bottom assembly. For a dependable solution in door hardware, the Richelieu 242341BCLPH is a standout choice.

Pivot Hinge for Flush/Recessed Door

– For flush or recessed doors
– Top header and bottom side frame already mounted
– Doors can be installed floor-to-ceiling
– Elongated screw holes for easy alignment
– Leaves of bottom assembly separate for quick and easy installation
– Bushings at the pivot point provide smooth and silent operation

Attributes

Ship via: Can Ship UPS

Door Thickness: 1 1/8 to 1 3/8 in

Finish/ Color: Brushed Chrome

Gauge: 0.131 in

Hinge Opening Angle: +180°

Load Capacity: 75 lb

Opening: Left-Hand Opening

Product #: 242341BCLPH

Product number: 242341BCLPH

Product №: 242341BCLPH

Screw/ Nail: #12 x 31.75 mm (1-1/4″), #12 x 25.4 mm (1″)

Unit: Box

Unit 1: case – 20

Unit 2: case – 20
