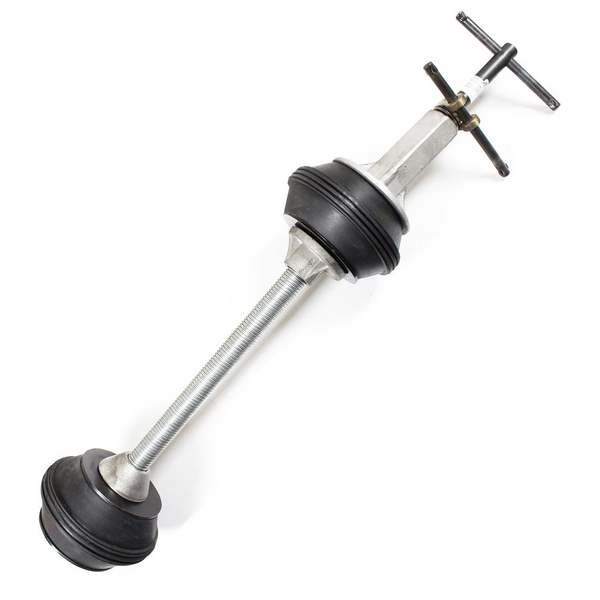

Petersen 149-206- 5.85″-6.5″ Dia Mechanical Hand Tight Double Test Pipe Plug
Original price was: $547.30.$109.46Current price is: $109.46.
These double mechanical test plugs come standard with molded rubber.
Precision Aluminum and Steel And Molded Rubber For Tight Seal Double test plugs for all low pressure sealing requirements.
Features:
- One double mechanical test plug does the work of three plugs.
- The ball is molded of rubber with parallel sealing ribs for a perfect seal.
- Castings are of non-rust aluminum. Handles are of coated steel.
- All parts are replaceable.
- Blowouts and water damage are prevented because the double mechanical test plug allows the system to be drained prior to its removal.
- The flexible spring bends to any angle to effectively test from any type fitting.
- The 3″ – 8″ size double test plugs have two tee handles so each seal can be tightened and released separately.
| By-Pass | None |
| Country of Origin | USA |
| Dia. Max | 6.5″ (165mm) |
| Dia. Min | 5.85″ (149mm) |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Rubber, Molded |
| Nominal Pipe | 6″ (152mm) |
| Pipeline Max PSI | 10 psi (0.68 bar) |
| Pressure Pipeline Max Head | 23 ft (7.01 m) |
| Sage Subcategory Number | W1492 |
| Seal Expansion System | Hand Tightening |
| Seal, Center To Center, IN | 16″ (406.4mm) |
| Shipping Wt. | 11 Lb (4.99 Kg) |
| Style | Internal to Pipe Plug |
