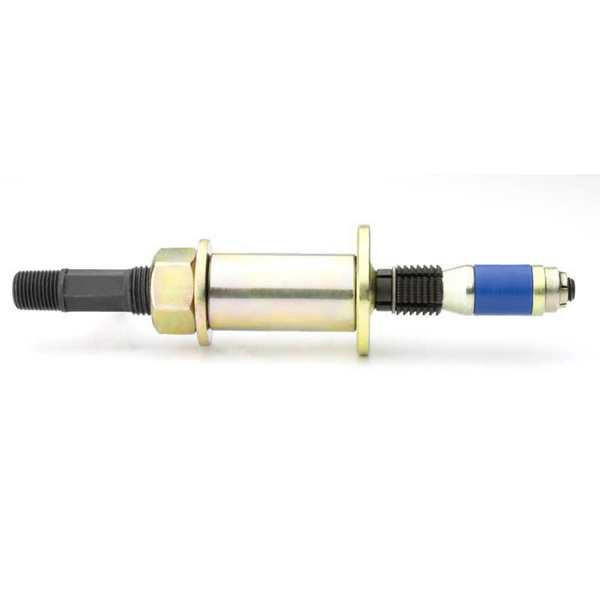

Name: Petersen 147-1005-P10 0.5" Dia Very High PSI Mechanical Pipe Plug, Sch-10, 1/8" Bypass
SKU: 147-1005-P10_A
Availability: InStock

Petersen 147-1005-P10 0.5″ Dia Very High PSI Mechanical Pipe Plug, Sch-10, 1/8″ Bypass

SKU: 147-1005-P10_A Category: Plumbing Tag: Petersen

High Pressure Hydrostatic Testing Plugs

High Pressure Hydrostatic Test Plugs use the test pressure to help seal more securely against the pipe’s inner diameter.

Applications:

Features:

Easy installation – no welding required
Increased safety – dual-serrated gripper design uses test pressure to increase holding capabilities
Saves up to 85% in testing time vs. welded-on end cap procedures
Hardened shaft, cone, and grippers increases durability
Laser-marked top washer for easy identification, storage, and traceability
Facilitates testing in hardened materials up to HRC32
Complies with ASME Boiler and Pressure Vessel Codes

By-Pass Flow Through Cap Type	Not Included
By-Pass Size	1/8″ MNPT
Country of Origin	USA
Depth, Full Installation	2.27″ (57.7mm)
Functional ID Range	0.63″-0.69″ (16mm-17.5mm)
Hex Nut Wrench Size	3/4″
Length, Gripper	0.8″ (20.2mm)
Length, Seal to Gripper	1.67″ (42.3mm)
Lngth, Overall	5.31″ (134.9mm)
Material, Body	Zinc Plated Steel
Material, Hardware	Zinc Plated Steel, SS Flex Locknuts
Material, Seal	Urethane
Nominal Pipe	0.5″ (12.7mm)
Pipe Schedule	10
Plug OD	0.60″ (15.2mm)
Press., Max Test, PSI	15,000 psi (1034 bar)
Sage Subcategory Number	W147
Shaft Hex Wrench Size	3/8″
Shaft/Port I.D.	0.11″ (2.8mm)
Shipping Wt.	0.5 Lb (0.23 Kg)
Total Clearance From Min. I.D.	0.03″ (0.8mm)
Type	1
