-70%
Kennametal – 13/32″ 140° Solid Carbide Jobber Drill
Original price was: $171.90.$51.57Current price is: $51.57.
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials. Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron. Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 13/32 |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 71.00 |
| Overall Length (mm) | 118.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Standard |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (mm) | 56.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Specification Designation | DIN |
| Drill Point Length (mm) | 1.80 |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Specification Number | DIN 6537K |
| Series/List | B052A-CPG |
Related products
-
Holemaking
DORMER – 9.7mm 140° Solid Carbide Jobber Drill
Original price was: $119.00.$35.70Current price is: $35.70. -
Holemaking
Chicago-Latrobe – 1/32″, Solid Carbide Spade Drill Bit
Original price was: $20.54.$6.16Current price is: $6.16. -
Holemaking
Made in USA – 1/2″ Carbide-Tipped Regular Spiral Drill Bit
Original price was: $8.35.$2.51Current price is: $2.51. -
Holemaking
Made in USA – 7/16″, High Speed Steel Half Round Drill Bit
Original price was: $302.57.$90.77Current price is: $90.77. -
Holemaking

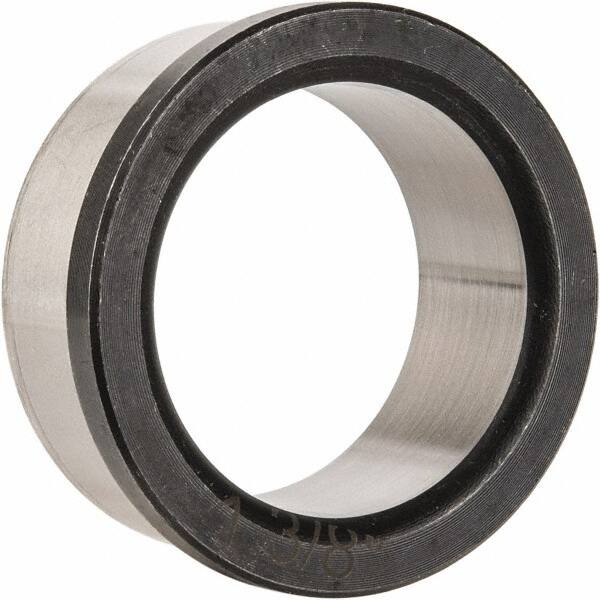

Boneham – 1-3/8″ Inside Diam, HL Drill Bushing Liner with Head
