Name: Ives FB31P-12-MD US32D Flush Bolts
SKU: IVE_FB31P12MDUS32D_A
Availability: InStock

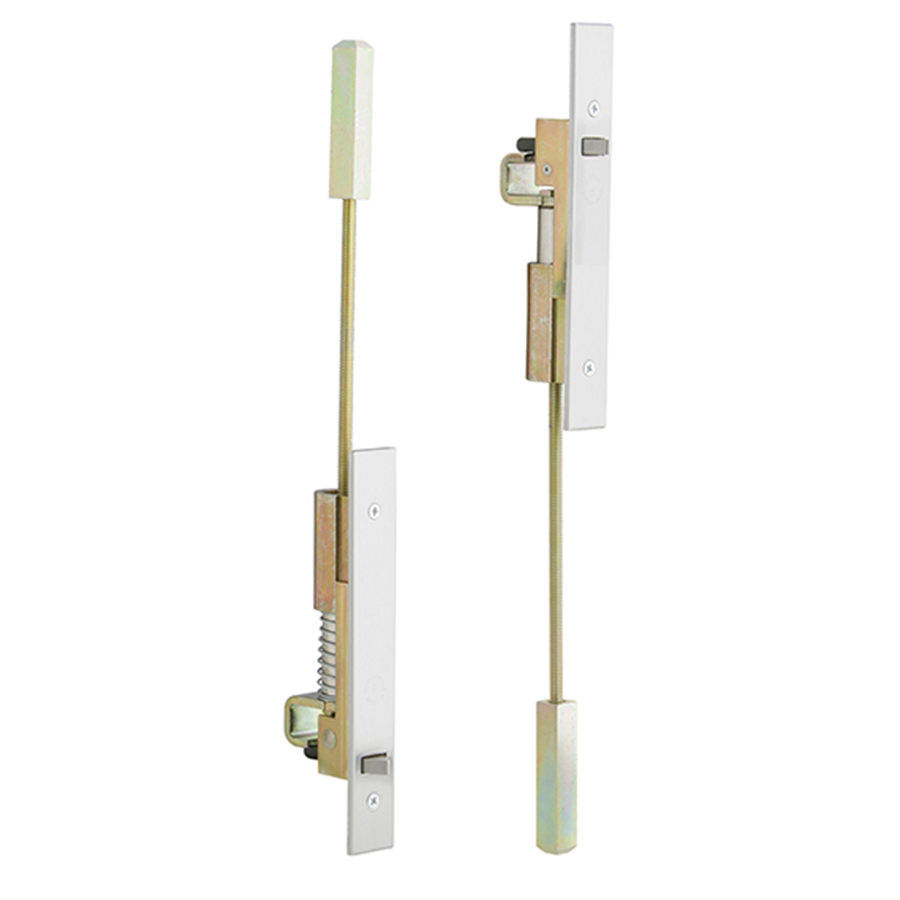

Ives FB31P-12-MD US32D Flush Bolts

SKU: IVE_FB31P12MDUS32D_A Category: Ives

Ives FB31P-12-MD US32D Flush Bolts
Automatic Flushbolt, Pair, 12″ Rods, Metal Doors, Satin Stainless Steel

Features

6 X 3⁄4″ FPHSMS
Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened
Certifications:
FB31B bottom bolt only
Non-handed
UL10C Listed (3 hour) fire doors 8’0″ x 10’0″ when both top and bottom bolt used
Fits standard ANSI/BHMA A115.4 door frame preparations.
FB31T top bolt only
Only for use with metal doors
10 X 1″ FPHSMS
Bolt backset is 3⁄4″
10-12 X 1 1⁄4″ Plastic anchor
8-32 X 3⁄8″ UFPHMS
8 X 1″ FPHSMS
FB31P top and bottom bolts pair
Low actuation forces—top bolt has no spring tension
Mounting hardware:
6-32 X 3⁄8″ FPHMS
Standard rod length is 12″, which is measured from the center of the flush bolt body to the bolt tip
Bolt throw is 3⁄4″ with a 7⁄8″ vertical adjustment

Product Assemble-to-Order. Lead Time 2-5 days

Ship via: Can Ship UPS

Alternate Codes: FB31P 12-MD US32D, FB31P-12-MD US32D, FB31P12MDUS32D, IVEFB31P 12-MD US32D

Category: Door Accessories, Flush & Slide Bolts

Finish: 630/US32D

Finish Description: Satin Stainless Steel

Series: Ives Architectural Hardware

Subtype: Flush Bolts

Type: Hinges and Pivots
