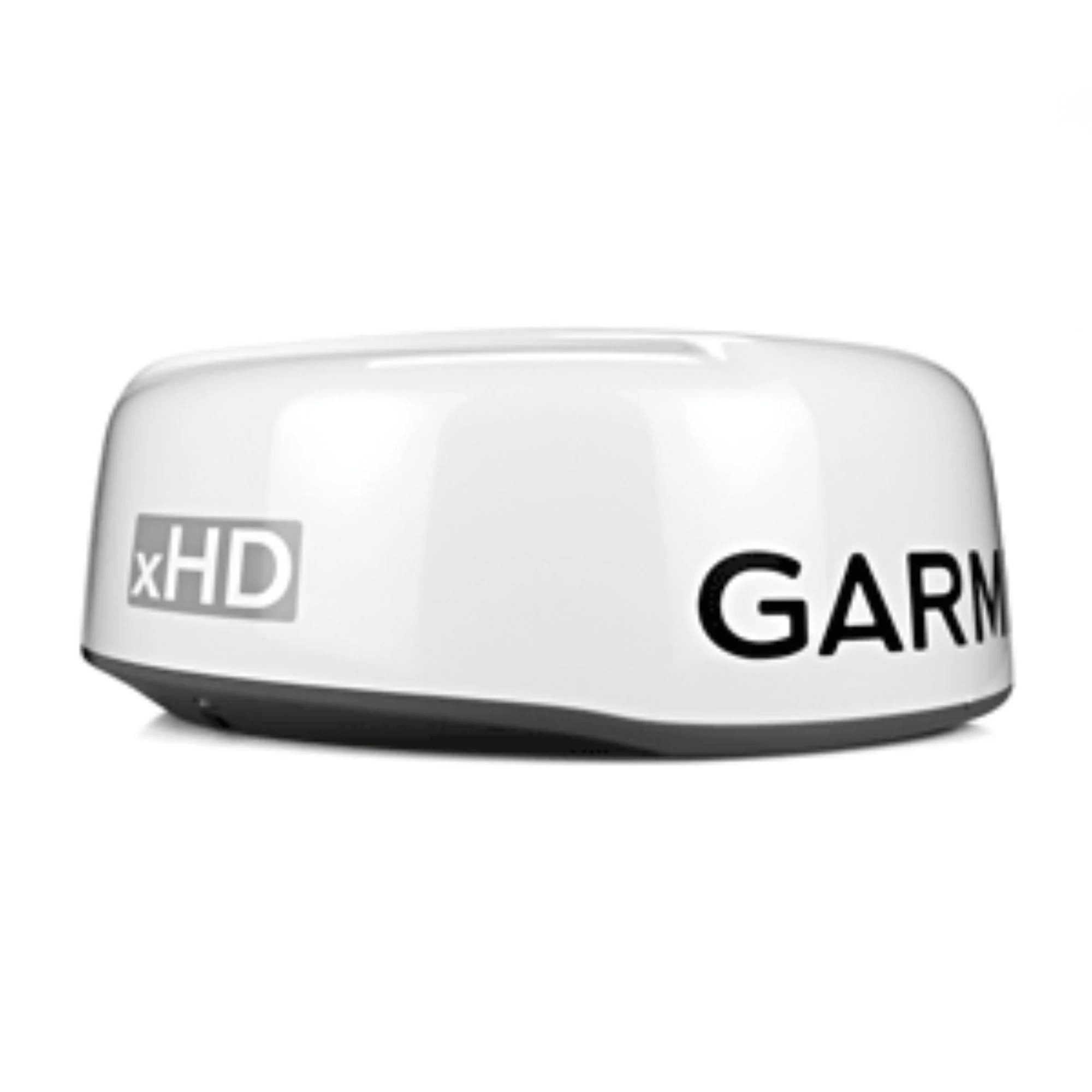

Garmin GMR 24 xHD Radar w/15m Cable

Garmin GMR 24 xHD Radar w/15m Cable Product Description

This 24 Inch high-definition radar dome pairs ease of use with advanced features typically found on open arrays for enhanced situational awareness. You have the option to protect areas behind the radar from being radiated while providing full forward-looking radar capability. This also makes installation more flexible. Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor for best results. GMR 24 xHD provides MARPA target tracking when combined with a multifunction display and heading sensor.

Garmin 100096000 Attributes

• Radar Type: Radome
• Size: 24 Inch Dome
• Range: 20 Meters To 48 Nautical Miles
• Rotation Speed: 24 To 48 RPM
• Power Output: 4 Kilo Watt
• Dimension: 25.4 Inch Diameter x 9.8 Inch Height
• Input Voltage: 11 To 35 Volt
• Beam Width: 3.7 Degree Horizontal/ 25 Degree Vertical
• Color: White
• Waterproof Rating: IPX7 Rating Waterproof
• Includes: With Mounting Hardware Kit, 15 Meter Power Cable, 15 Meter Network Cable, Mounting Template

Garmin 100096000 Features & Benefits

• 24 Inch Dome Radar Delivers 4-KW Transmit Power And Clear Echo Definition At All Ranges; Maximum Range Of 48 Nautical Miles And 48- Or 24-RPM Rotation Speeds For Fast Screen Refreshes
• GMR 24 XHD Features 8-Bit True Color High Resolution For Outstanding Target Separation With Less Screen Clutter On Your Chartplotter
• Radar Doesn’t Have Any Complex User Settings To Deal With, So It’s Easy To Install And Start Using
• Gain Levels Automatically Adjust To Optimum Settings For Harbors, Near Shore And Offshore In Open Waters
• Feature Enables The Fully Independent Split-Screen Display Of Far And Close Radar Views
• Limited 1 Year Warranty

Garmin 100096000 Installation Instructions

• GMR_18_24_xHD_Install_EN-US.pdf
• ISPI_Marine_Radar.pdf

Garmin 100096000 Warranties

• garmin-marine-warranty-policy.pdf

GMR 24 xHD Radar with 15m Cable

• 4 kW high-definition 24” dome radar
• Pairs ease of use with advanced open-array features
• 48 or 24 RPM rotation speeds for fast screen refreshes, auto adjusts as needed based on range
• 48 Mile max range setting
• No complex user settings, easy to install and start using

Our next-generation, 4 kW high-definition GMR 24 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.

The GMR 24 xHD has a narrower beam width that paints a very precise, high-resolution image. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit color (select chartplotters); range of 48 nm. Optional “No Transmit Zone” can protect areas behind the radar from being radiated while providing full forward-looking radar capability. This makes installation more flexible by providing more suitable installation options on your boat.

In The Box:

• GMR 24 xHD
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template
• Grommet for marine cable

GMR 24 xHD radar with 15m cable. The next-generation 4kW high-definition GMR 24 xHD hemispherical radar with intuitive and advanced open array functions is very easy to use. The intuitive operation makes the modes and settings easy to understand, so you can enjoy excellent performance without a lot of technical knowledge. The GMR 24 xHD has a narrow beam width and can draw very accurate high-resolution images. The dynamic automatic gain and dynamic sea filter will be continuously adjusted to adapt to the surrounding environment to provide the best performance under different conditions. You can choose from multiple levels of aggressiveness, or use manual gain adjustment. Two-way operation allows long-range and short-range radar views to be displayed on a full 8-bit color separation screen. The range is 48 nautical miles.
