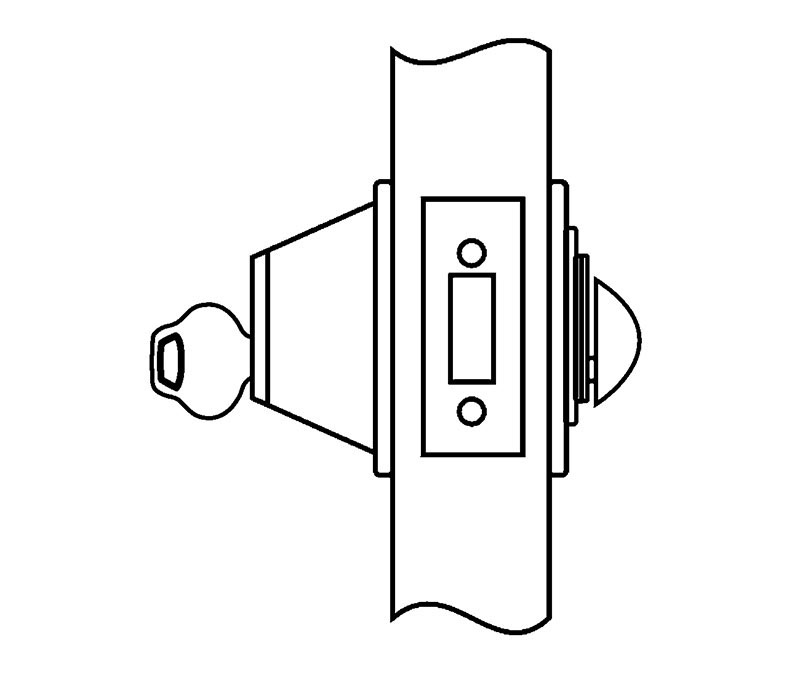

Corbin Russwin DL3017 626 LH Deadlock

Corbin Russwin DL3017 626 LH Deadlock

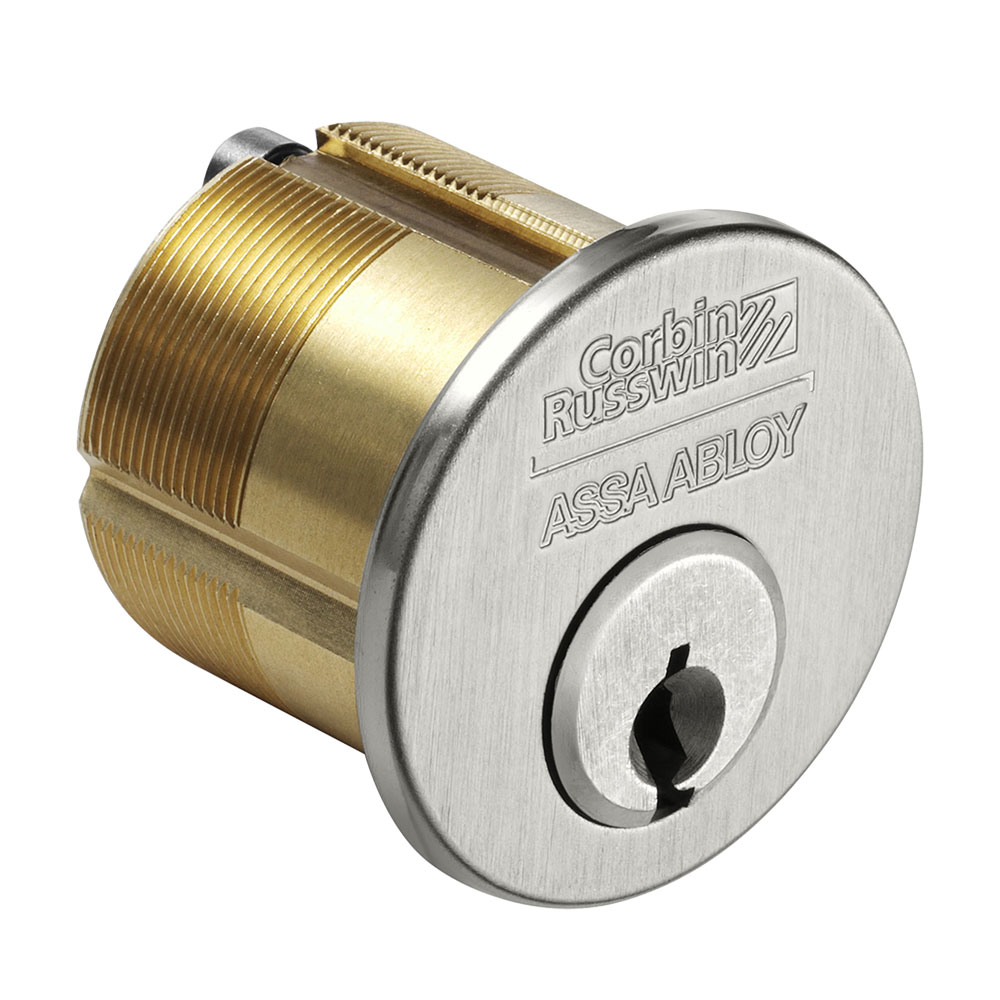

FeaturesHanding: Non-handed, except DL3017, which is handed and field reversible.Door Thickness: Standard – 1-3/4″ (44mm) – 2-1/4″ (57mm). Optional door thicknesses available; see Quick Codes.Backset: Standard – 2-3/4″ (70mm); Optional – 2-3/8″ (60mm)Front: Standard – wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).Deadbolt: Zinc diecast hardened steel insert. 1″ (25mm) throw, 5/8″ (16mm) wide x 3/4″ (19mm) high.Strike: Standard – 2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes availableCylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.Keys: Two nickel silver standard.Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)Warranty: One-year limited.

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Bolt Protection: 1 In.

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4 In. – 2-1/4 In.

Dust Box: None

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: No

Function: 17-Classroom Deadbolt

Hand: LH

Keying: Keyed Different

Keys: Cut

Keyway: L4

Latch Backset Dim: 2-3/4 In.

Latch Type: Deadbolt

Limited Warranty: 1 Year

Num Of Keys: 2

Num Pins: 6

Screws: Combination

Series: DL3000 Series Cylindrical Deadlocks

Strike Height: 2-3/4 In.

Strike Type: Flat

Strike Width: 1-1/8 In.

Subtype: Deadlock

Type: Locks, Cylinders, Cores, Keyblanks
