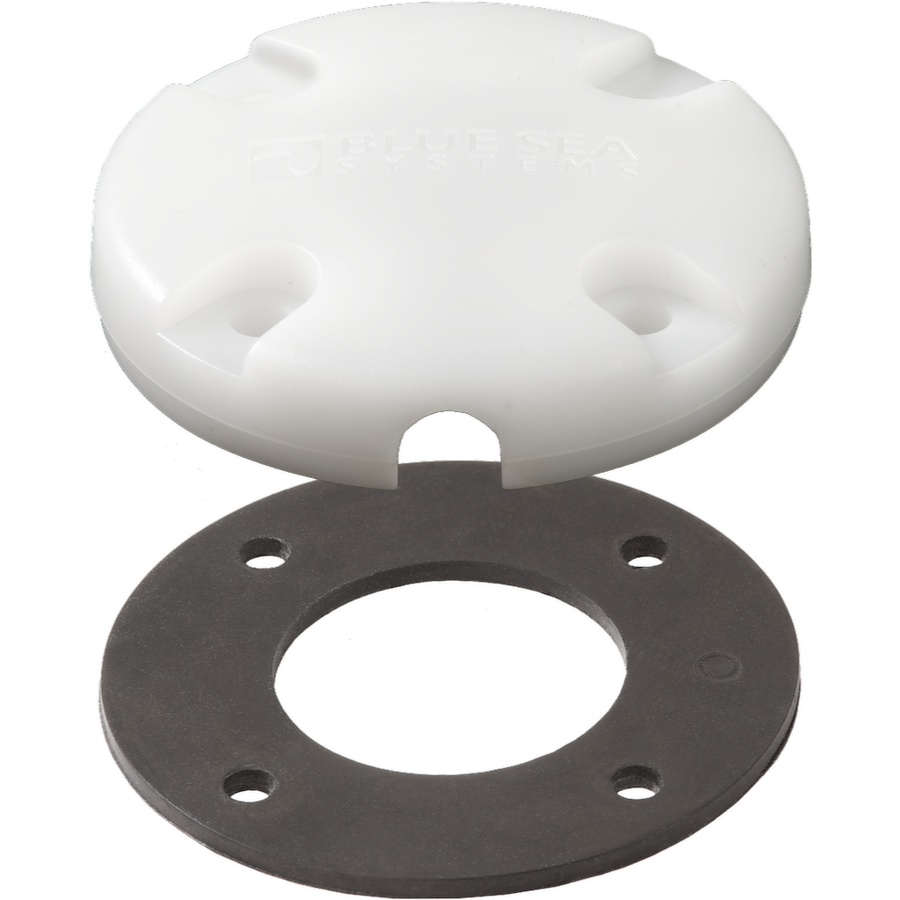

Blue Sea 1007 Side Entry CableClam

Blue Sea 1007 Side Entry CableClam Product Description

Provides a waterproof pass-through for antenna cables without requiring removal of the factory installed connector

Provides a waterproof side entry for antenna cables without requiring removal of the factory installed connector.

Blue Sea 1007BSS Attributes

• Compatibility: Antenna Cable
• Capacity: Single Cable
• Connector Type: Without Connector
• Mounting Type: Roof Mount
• Weatherproof: Yes
• Color: White/ Black
• Material: UV-Stabilized Thermoplastic Ring
• With Dust Caps: No
• With Mounting Hardware: Yes

Blue Sea 1007BSS Features & Benefits

• Low Profile, Contoured Edge Reduces The Risk Of Tangling Lines
• Features All Fasteners
• For Use Above The Waterline Only
• Simple One-Piece Design For Easy Side Mount Installations
• No Supplier Warranty

Blue Sea 1007BSS Installation Instructions

• 1007.pdf

Blue Sea 1007BSS Technical Bulletins

• 1007.pdf
• 1007_BUL.pdf

Side Entry CableClam
Provides a waterproof side entry for antenna cables without requiring removal of the factory installed connector.
Features:

• Simple one-piece design for easy side mount installations
• Low profile, contoured edge reduces the risk of tangling lines
• Includes all fasteners
• For use above the waterline only

Specifications:

• Max Cable Diameter: 0.28in (7.11 mm)
• Max Connector Diameter: 1in (25.4 mm)
• Ring Material: UV-Stabilized Thermoplastic
• Seal Material: UV-Stabilized Buna-N Rubber
• Weight: 0.40lb (0.18 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The one-piece design makes installation easy. Low profile contour edges reduce the risk of tangling. Accommodate unnecessary large proprietary fish finder plugs.
