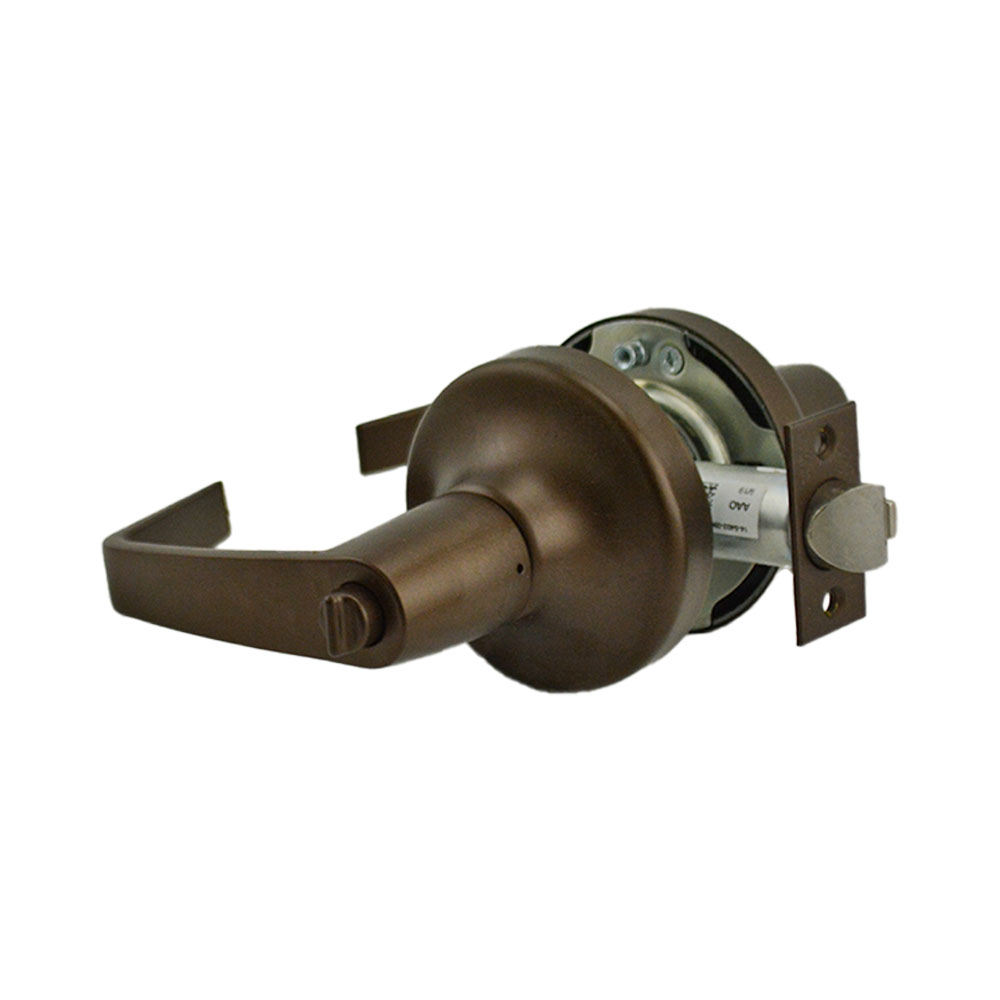

Accentra AU4707LN613ESCHC Augusta Grade 1 Cylindrical Lock, Schlage C Keyway, Oil Rubbed Bronze Finish

Accentra AU4707LN613ESCHC Augusta Grade 1 Cylindrical Lock, Schlage C Keyway, Oil Rubbed Bronze Finish

ASSA Abloy Accentra AU4707LN613ESCHC Office Entry Augusta Lever Grade 1 Cylindrical Lock combines durability and advanced design for commercial applications. Built to meet ANSI/BHMA A156.2 Grade 1 standards, this lockset ensures top-tier security and reliability. The UL fire-rated feature allows it to withstand fire conditions for up to three hours, providing peace of mind in critical situations. Designed for versatility, the AU4707LN is adjustable for door thicknesses ranging from 1-3/8″ to 1-3/4,” making it suitable for a variety of door applications. The lock features a 2-3/4″ backset and a crossbore size of 2-1/8″ with 5/8″ holes for through bolts. Its Augusta lever design not only enhances accessibility but also adds a touch of elegance with its oil-rubbed bronze finish. The Schlage C keyway offers a robust locking mechanism, while the 694 latch and 497-114 strike ensure smooth operation. With a round rose escutcheon and a limited 5-year warranty, this cylindrical lockset is an ideal choice for office entries and other high-traffic areas. Choose the ASSA Abloy Accentra AU4707LN for a blend of functionality and aesthetic appeal in your building’s security solution.

Office Entry Augusta Lever Grade 1 Cylindrical Lock with Schlage C Keyway, 694 Latch, and 497-114 Strike US10BE (613E) Oil Rubbed Bronze Finish

ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities

• Adjustable from 1-3/8″ to 1-3/4″ Door Thickness
• ANSI / BHMA A156.2 Grade 1
• 2-1/4″ x 1-1/8″ Beveled Front Standard
• UL Fire Rated Up to 3 Hours
• Non Handed

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with 5/8″ Holes for Thru Bolts

Design: Augusta

Dimension: 5-1/4″ Lever Length; 3-1/2″ Projection; 3-1/2″ Rose Diameter

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8″ to 1-3/4″

Finish: Oil Rubbed Bronze

Finish Code: 613E

Function: Office Entry

Hazardous Material: NO

Keyway: Schlage C Keyway

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Augusta Lever

Manufacturer Warranty: Limited 5 Year Warranty

Material: Cast Zinc

No Of Inners: 1

No Of Pins: 6 Pin

Order_ Qty: 1

Rose Escutcheon Design: Round Rose

Series: 4700LN Series

Strike: ANSI Strike

Strike Dimension: 1-1/4″ x 4-7/8″

Subcategory: Cylindrical Locksets

Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
