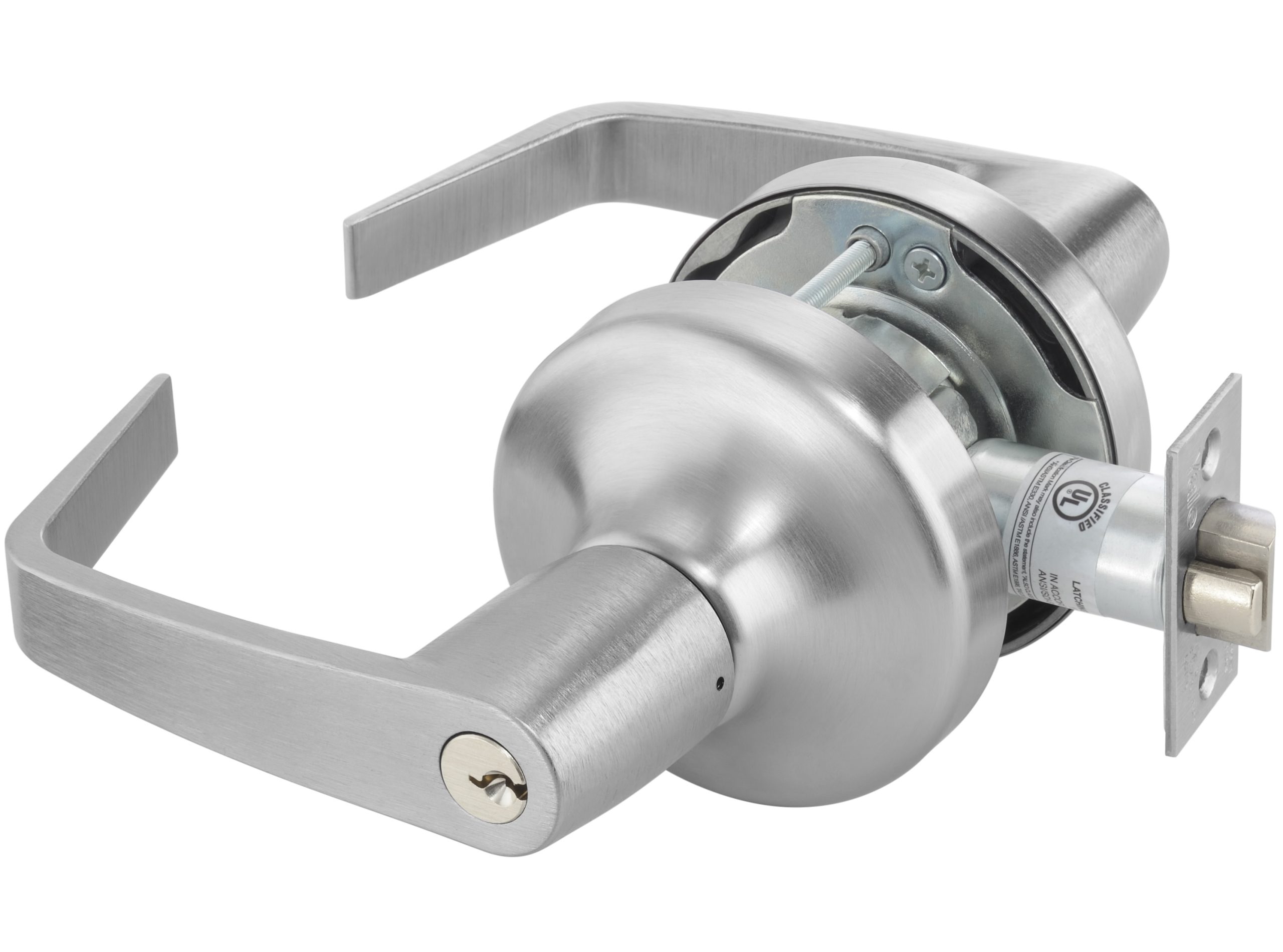

Accentra AU4705LN626SCHC Augusta Grade 1 Storeroom Lever Lock, Schlage C Keyway, Satin Chrome

Accentra AU4705LN626SCHC Augusta Grade 1 Storeroom Lever Lock, Schlage C Keyway, Satin Chrome

ASSA Abloy Accentra AU4705LN626SCHC Storeroom Augusta Lever Grade 1 Cylindrical Lock is designed for high-performance security in commercial, institutional, and multi-residential settings. This robust locking solution meets ANSI/BHMA A156.2 Grade 1 standards and is UL fire-rated for up to 3 hours, ensuring reliability in critical applications. The lock is adjustable to accommodate door thicknesses ranging from 1-3/8″ to 1-3/4″, making it versatile for various installations. Its non-handed design simplifies installation, allowing for flexibility in door configurations. The Augusta lever design, finished in elegant satin chrome (US26D), adds a contemporary touch while ensuring durability through its cast zinc construction. Featuring a 2-3/4″ backset, the lock includes a 694 latch and a 497-114 ANSI strike, providing seamless integration with standard door preparations. With a 2-1/8″ crossbore size and 5/8″ holes for thru bolts, installation is straightforward for building professionals. The 6-pin Schlage C keyway further enhances security, while the lock’s limited 5-year warranty offers peace of mind. Ideal for storeroom applications, the ASSA Abloy Accentra AU4705LN626SCHC is the perfect combination of style, security, and reliability for any facility.

Storeroom Augusta Lever Grade 1 Cylindrical Lock with Schlage C Keyway, 694 Latch, and 497-114 Strike US26D (626) Satin Chrome Finish

ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities

• Adjustable from 1-3/8″ to 1-3/4″ Door Thickness
• ANSI / BHMA A156.2 Grade 1
• 2-1/4″ x 1-1/8″ Beveled Front Standard
• UL Fire Rated Up to 3 Hours
• Non Handed

Attributes

Ship via: Can Ship UPS

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with 5/8″ Holes for Thru Bolts

Design: Augusta

Dimension: 5-1/4″ Lever Length; 3-1/2″ Projection; 3-1/2″ Rose Diameter

Door Range: 1-3/8″ to 1-3/4″

Door Thickness: 1-3/8″ to 1-3/4″

Finish: Satin Chrome

Finish Code: 626

Function: Storeroom

Hazardous Material: NO

Keyway: Schlage C Keyway

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Augusta Lever

Manufacturer Warranty: Limited 5 Year Warranty

Material: Cast Zinc

No Of Inners: 1

No Of Pins: 6 Pin

Order_ Qty: 1

Rose Escutcheon Design: Round Rose

Series: 4700LN Series

Strike: ANSI Strike

Strike Dimension: 1-1/4″ x 4-7/8″

Subcategory: Cylindrical Locksets

Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
