-60%

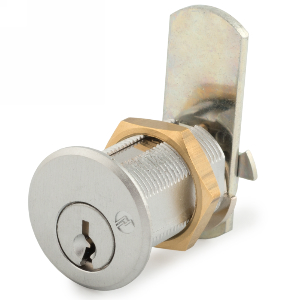

1-3/16″ Cylinder N-Series Pin Tumbler Cam Lock, Keyed KA101, Satin Chrome, Olympus Lock DCN2-26D-101
Original price was: $18.33.$7.33Current price is: $7.33.
Keying: Can be keyed together with other N Series locks
Rekeyable: Easily rekeyable via cylinder retainer clip
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261 / E07271
Woodwork Institute: (WI) acknowledged product
Body: Zinc die cast; Cylinder: Zinc die cast, pin tumbler
Standard function: Key removable in locked or unlocked position
Cams: 2 reversible cams work in all positions
Face: 1″ face covers splintering, no additional trim ring required
Finishes: 26D, 3,10B
KEYING INFORMATION
Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA – 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard; Grand masterkeyed: Available
INCLUDED ACCESSORIES
DCNP-100-SC straight cam, DCNP-100-BC offset reversible cam, DCNP-500-ARP anti-rotation plate,
DCNP-200-OCD lost-motion cam shifter
Product details
| Manufacturer | : OLYMPUS LOCK INC. |
| SKU | : 11462260 |
| Manufacturer’s Part | : DCN2-26D-101 |
| Weight | : 0.270 lbs |
| Sold in Multiples of | : 1 |
| Priced By | : Each |
| Preorder | : N |
| Product Finish | : Satin Chrome |
| Product Type | : Cam Lock |
| Includes | : Cam Lock, DCNP-100-SC straight cam, DCNP-100-BC offset reversible cam, DCNP-500-ARP anti-rotation plate, DCNP-200-OCD lost-motion cam shifter |
| Cylinder Length | : 1-3/16″ |
| Max Material Thickness | : 7/8″ |
| Keying | : Keyed Alike #101 |
